Tightening procedure for cylinder head bolts - AR01.30-P-5800-01MMB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 152.9, 157, 278
CYLINDER HEAD
| Number | Designation | Engine 152 | Engine 157 | Engine 278 | |||
|---|---|---|---|---|---|---|---|
| BA01.30-P-1001-01X | Screw/bolt, cylinder head to crankcase | M11 | Stage 1 | Nm | 20 | 20 | 20 |
| Stage 2 | Nm | 40 | 40 | 40 | |||
| Stage 3 | ∠° | 90 | 90 | 90 | |||
| Stage 4 | ∠° | 90 | 90 | 90 | |||
| Stage 5 | ∠° | 90 | 90 | 90 | |||
| BA01.30-P-1002-01X | Cylinder head bolt on timing case cover/cylinder head cover | M7 | Nm | 14 | 14 | 14 | |
The tightening sequence indicated for the LH and RH cylinder head must be observed. Consequential damage can occur otherwise.
To loosen cylinder head bolts (1 to 11), use the reverse tightening order.
- Tighten cylinder head bolts (1 to 10) to stage 1.
- Tighten cylinder head bolts (1 to 10) to stage 2.
- Tighten cylinder head bolts (1 to 10) to stage 3.
- Tighten cylinder head bolts (1 to 10) to stage 4.
- Tighten cylinder head bolts (1 to 10) to stage 5.
- Tighten cylinder head bolts (11).

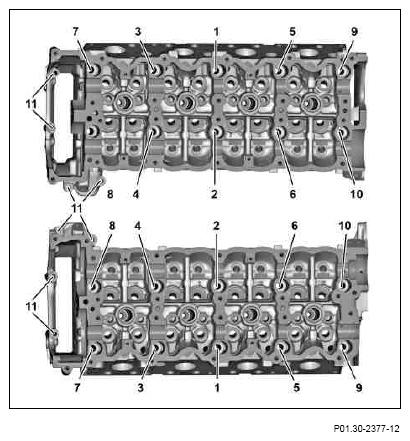

Shown on engine 278
