Tightening procedure for cylinder head bolts - AR01.30-P-5800-01CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 117, 156, 166, 172, 176, 204, 205, 207, 212, 218, 221, 222, 246, 253
TIGHTENING TORQUES, CYLINDER HEAD
| Number | Designation | Engine 651 | ||
|---|---|---|---|---|
| BA01.30-P-1001-01V | Bolt, cylinder head to timing case cover | M8 | Nm | 20 |
TIGHTENING TORQUES, CYLINDER HEAD
| Number | Designation | Engine 651 | |||
|---|---|---|---|---|---|
| BA01.30-P-1002-01V | Bolt, cylinder head to crankcase | M12 | Stage 1 | Nm | 10 |
| Stage 2 | Nm | 50 | |||
| Stage 3 | ∠° | 90 | |||
| Stage 4 | ∠° | 90 | |||
| Stage 5 | ∠° | 90 | |||
| Stage 6 | ∠° | 90 | |||

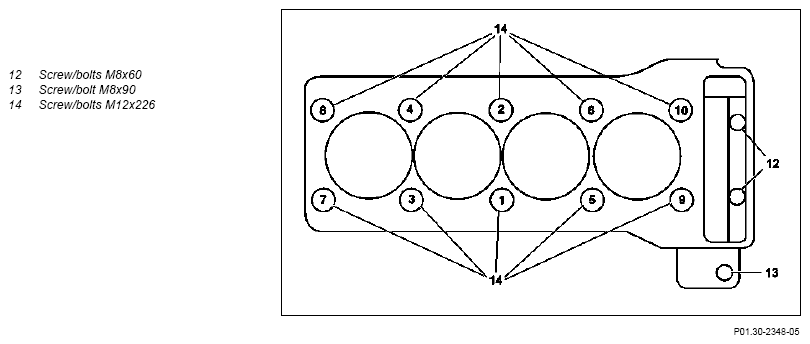

Observe the following specified sequence
when tightening in order to avoid stresses in the cylinder head.
Distortion of the cylinder head will occur otherwise.
Loosening takes place in reverse order (see Fig 1).
All screw/bolts should be tightened with a tightening torque or tightening angle according to the respective stage.
- Tighten screw/bolts M12x226 (14) according to Stage 1
.
- M8x90 Tighten screw/bolt (13)
- M8x60 Tighten screw/bolts (12)
- Tighten screw/bolts M12x226(14) according to Stage 2.
- Check tightening torque of the screw/bolt M8x90X (13); adjust if necessary.
- Check tightening torque of screw/bolts M8x60 (12); adjust if necessary.
- Tighten screw/bolts M12x226(14) according to Stage 3.
- Tighten screw/bolts M12x226(14) according to Stage 4.
- Tighten screw/bolts M12x226(14) according to Stage 5.
- Tighten screw/bolts M12x226(14) according to Stage 6.
