Measure cylinder bores - AR01.40-P-9202EWS

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 in MODEL 212

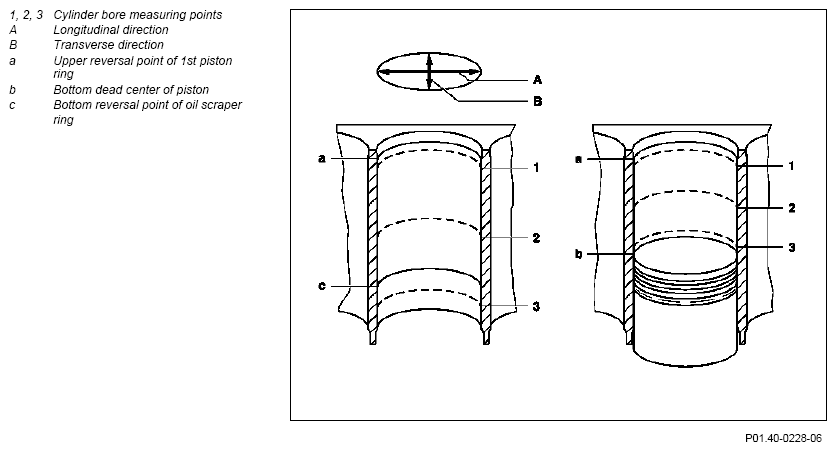

Fig 1: Measuring Cylinder Bore
G09973935Courtesy of MERCEDES-BENZ USA
Figure item, etc.  Work instructions
1, 2, 3 Cylinder bore measuring points IMPORTANT Measure diameter of cleaned cylinder bores with an inside caliper in a longitudinal and transverse direction.
SPECIAL TOOL Fig 2
SPECIAL TOOL Test specifications for cylinder bore *BE01.40-P-1001-01I
TEST SPECIFICATIONS FOR CYLINDER BORE

Number Designation Engine 272.91/92/94/95 Engine 272.96/97/98/99
BE01.40-P-1001-01I Cylinder dia. Stage X mm 88.000 to 88.015 92.900 to 92.915
Stage ⓧ mm 88.100 to 88.115 93.000 to 93.015
Repair stage mm 88.250 to 88.265 93.150 to 93.165
TEST SPECIFICATIONS FOR CYLINDER BORE

Number Designation Engine 273.96/97
BE01.40-P-1001-01I Cylinder dia. Stage X mm 98.000 to 98.015
Stage ⓧ mm 98.100 to 98.115
Repair stage mm 98.250 to 98.265
Fig 2: Identifying Dial Indicator (001 589 53 21 00)
G09973936Courtesy of MERCEDES-BENZ USA
