Measure cylinder bores - AR01.40-P-9202B
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 611.960/961/962, 612.961/962/963/965/966/967/990, 613.960/961, 642
MODIFICATION NOTES
| 25.7.06 | Cylinder liner Ø | Engine 611 | *BE01.40-P-1001-01E |
| Measure | |||

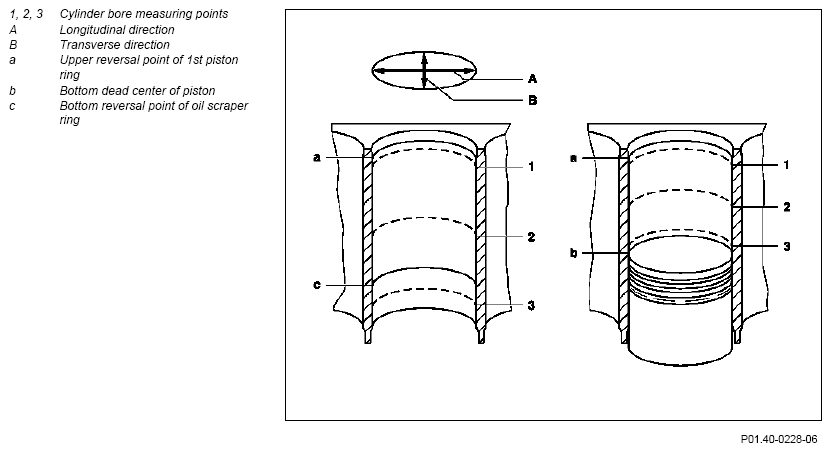

| 1 | Measure cylinder bores at measuring points (1, 2, 3) in a longitudinal (A), and transverse direction (B) | ||
| Engine 611/612/613: Cylinder liner Ø |
*BE01.40-P-1001-01E | ||
| Cylinder liner wear limit in longitudinal and transverse direction. | *BE01.40-P-1003-01E | ||
| Cylinder liner: permissible deviation from a cylindrical shape (when new) | *BE01.40-P-1004-01E | ||
| Engine 642: Cylinder liner Ø |
*BE01.40-P-1001-01J | ||
| Cylinder liner: wear limit in longitudinal and transverse direction, permissible deviation from a cylindrical shape (when new), wear limit, permissible deviation from perpendicular to cylinder top, basic peak-to-valley height (R3Z ), max. peak-to-valley height (Rmax) | *BE01.40-P-1002-01J | ||
| Honing angle | *BE01.40-P-1003-01J |
CHECK VALUES FOR CYLINDER BORE
| Number | Designation | Engine 611 | Engine 612.961/962/963/965/966/967 | ||
|---|---|---|---|---|---|
| BE01.40-P-1001-01E | Cylinder liner Ø | Standard dimensions | mm | 88, 0 | 88.0 |
| Group code letter A | mm | 88.000 to 88.006 | 88.000 to 88.006 | ||
| Group code letter X | mm | 88.006 to 88.012 | 88.006 to 88.012 | ||
| Group code letter B | mm | 88.012 to 88.018 | 88.012 to 88.018 | ||
| BE01.40-P-1003-01E | Cylinder liner | Wear limit in longitudinal and transverse direction | mm | 0.020 | 0.020 |
| BE01.40-P-1004-01E | Cylinder liner | Permissible difference of cylinder shape (when new) | mm | 0.000 to 0.014 | 0.000 to 0.014 |
| Wear limit | mm | - | - | ||
CHECK VALUES FOR CYLINDER BORE
| Number | Designation | Engine 613 | Engine 612.990 | ||
|---|---|---|---|---|---|
| BE01.40-P-1001-01E | Cylinder liner Ø | Standard dimensions | mm | 88.0 | 88, 0 |
| Group code letter A | mm | 88.000 to 88.006 | - | ||
| Group code letter X | mm | 88.006 to 88.012 | - | ||
| Group code letter B | mm | 88.012 to 88.018 | - | ||
| BE01.40-P-1003-01E | Cylinder liner | Wear limit in longitudinal and transverse direction | mm | 0.020 | 0.020 |
| BE01.40-P-1004-01E | Cylinder liner | Permissible difference of cylinder shape (when new) | mm | 0.000 to 0.014 | 0.000 to 0.007 |
| Wear limit | mm | - | - | ||
CHECK VALUES FOR A CYLINDER BORE
| Number | Designation | Engine 642 | ||
|---|---|---|---|---|
| BE01.40-P-1001-01J | Cylinder liner Ø | Standard dimensions | mm | 83.009 |
| Group code letter A | mm | 83.000 to 83.006 | ||
| Group code letter X | mm | 83.006 to 83.012 | ||
| Group code letter B | mm | 83.012 to 83.018 | ||
| Repair stage 1 | mm | 83.050 | ||
| Repair stage 2 | mm | 83.100 | ||
| BE01.40-P-1002-01J | Cylinder liner | Wear limit in longitudinal and transverse direction | mm | 0.20 |
| Permissible difference of cylinder shape (when new) | mm | 0.000 to 0.007 | ||
| Wear limit | mm | 0.05 | ||
| Permissible difference of rectangularity related to cylinder height | mm | 0.05 | ||
| Peak-to-valley height (R3Z ) | mm | 0.002 to 0.005 | ||
| max. peak-to-valley height (Rmax) | mm | 0.011 | ||
| BE01.40-P-1003-01J | Honing angle | ∠° | 40 to 60 | |
