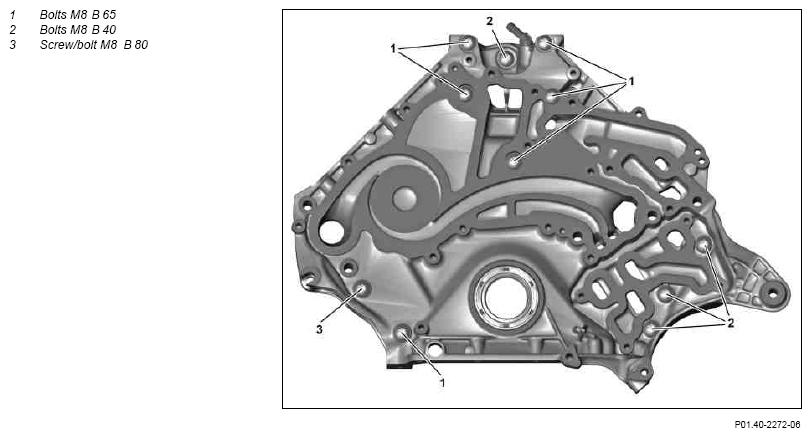

Bolt plan for timing case cover - AR01.40-P-8000-01MMB
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 152.9, 157, 278
MODIFICATION NOTES
| 25.1.12 | Value changed: screw/bolt, timing case cover to cylinder crankcase, stage 1 | Engine 278 | *BA01.40-P-1001-01K |
CRANKCASE, TIMING CASE COVER, END COVER
| Number | Designation | Engine 157 | Engine 278 | ||
|---|---|---|---|---|---|
| BA01.40-P-1001-01K | Bolt, timing case cover to cylinder crankcase | Stage 1 | Nm | 20 | 10 |
| Stage 2 | Nm | - | 20 | ||
CRANKCASE, TIMING CASE COVER, END COVER
| Number | Designation | Engine 152 | ||
|---|---|---|---|---|
| BA01.40-P-1001-01K | Bolt, timing case cover to cylinder crankcase | Stage 1 | Nm | 10 |
| Stage 2 | Nm | 20 | ||
