Bolt plan for timing case cover - AR01.40-P-8000-01CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651 in MODEL 166, 172, 204, 205, 207, 212, 218, 221, 222, 253

IMPORTANT Pay attention to different screw/bolt lengths and screw/bolt diameters.

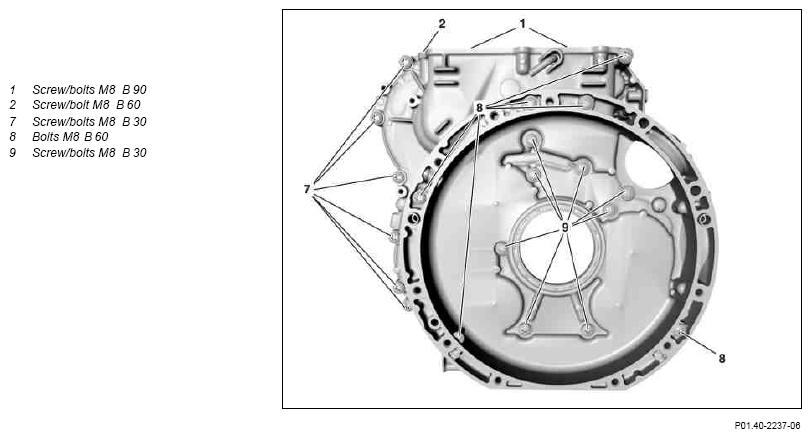

Fig 1: Timing Case Cover Bolt Diagram
G10240545Courtesy of MERCEDES-BENZ USA
