Retrofit COMAND APS with DVD changer - AN82.85-P-0004EWN

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.0## (except 212.074/075/076/077/092/093/094/095) 1# as of 4/13/13, 212.2## (except 212.274/275/276/277/292/298) 1# as of 4/13/13 as of model year 2014 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 494 (US version) without CODE 498 (Japanese version) without CODE 510 (Audio 20 incl. CD changer) without CODE 523 (MB Audio 20 radio)

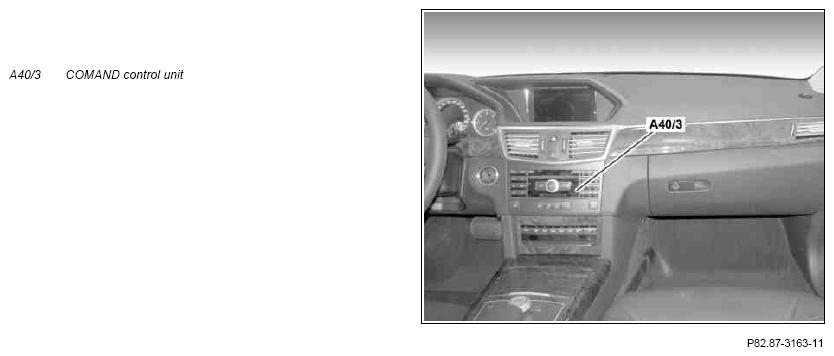

Fig 1: COMAND Control Unit
G09977539Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove COMAND controller unit (A40/3)
REFER TO TESTING & REPAIR     AR82.60-P-7502EW
    IMPORTANT Remove COMAND controller unit (A40/3).
INSTALLING Install
2 Install new COMAND controller unit (A40/3)
REFER TO TESTING & REPAIR     AR82.60-P-7502EW
3 Enter special equipment in online vehicle data card using the vehicle documentation system (VeDoc) IMPORTANTDelete:
  • CODE 527 (COMAND APS with single DVD drive (with navigation))

Add:
  • CODE 512 (COMAND APS with DVD changer)

4 Document retrofitted equipment in VeDoc IMPORTANT Attach "COMAND APS with DVD changer retrofitted as per AN82.85-P-0004EWN " note under the field organization texts to design group 82.
5 Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
6 Perform variant coding with XENTRY using the software calibration number (SCN) IMPORTANT Variant coding with XENTRY using the software calibration number (SCN) must be carried out for the following control units:
  • "COMAND controller unit (A40/3) with DVD changer"
  • "Instrument cluster"
  • "Front SAM control unit with fuse and relay module"

7 Disconnect diagnostic system
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
8 Perform function test IMPORTANT See operator's manual for COMAND controller unit (A40/3) incl. DVD changer.
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 (see EPC) Scope of delivery for COMAND APS with DVD changer 1
