Remove/install radar sensor for Lane Assistant in rear bumper - AR54.71-P-0200ECM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207 as of model year 2014 with CODE 238 (Active lane keeping Assist)
MODEL 212 as of model year 2014 with CODE 238 (Active lane keeping Assist)
MODEL 218 as of model year 2015 with CODE 238 (Active lane keeping Assist)
MODEL 207, 218, shown on MODEL 207
MODEL 212
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on vehicle lift | ||
| 2 | Remove rear bumper (1) | MODEL 207 as of model year 2014 with CODE 238 (Active lane keeping Assist) with CODE 550 (Trailer coupling) MODEL 212 as of model year 2014 with CODE 238 (Active lane keeping Assist) with CODE 550 (Trailer coupling) MODEL 218 as of model year 2015 with CODE 238 (Active lane keeping Assist) with CODE 550 (Trailer coupling) |
|
| AR88.20-P-2200EW | |||

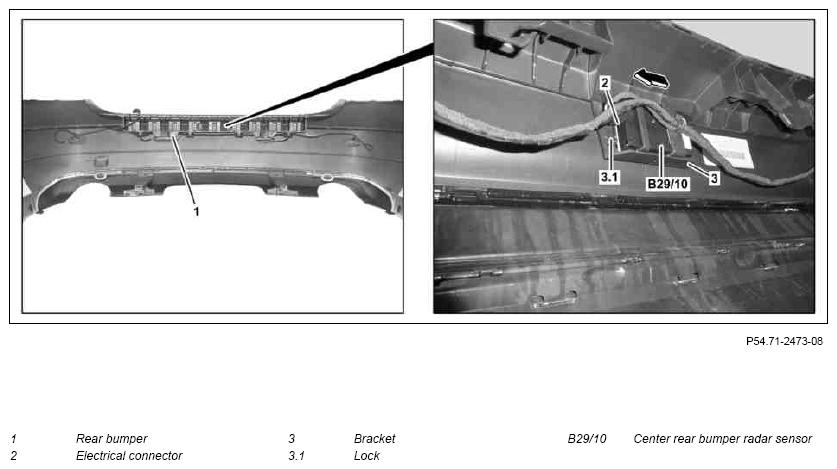

| 3.1 | Push lock (3.1) backwards and pull rear center bumper radar sensor (B29/10) in the direction of the arrow and out of the bracket (3) | MODEL 207 as of model year 2014 with CODE 238 (Active lane keeping Assist) MODEL 218 as of model year 2015 with CODE 238 (Active lane keeping Assist) |
|

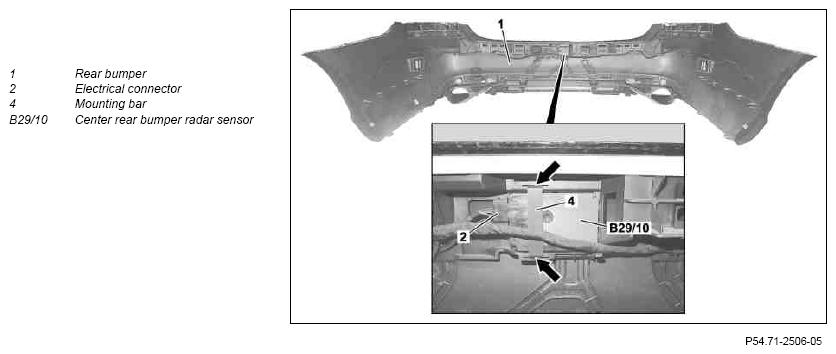

| 3.2 | Unclip retaining bracket (4) (arrows) and detach center rear bumper radar sensor (B29/10) | MODEL 212 as of model year 2014 with CODE 238 (Active lane keeping Assist) |
|
| 4 | Detach electrical connection (2) from rear center bumper radar sensor (B29/10) | ||
| 5 | Install in the reverse order | ||
| 6 | Connect diagnostic system, read out fault memory and delete if necessary | ||
| AD00.00-P-2000-04A |
