Remove/install fanfare horns - AR54.35-P-1555EX
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.077/277
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on lifting platform. | ||
| 2 | Remove front engine compartment paneling | AR61.20-P-1105EW | |

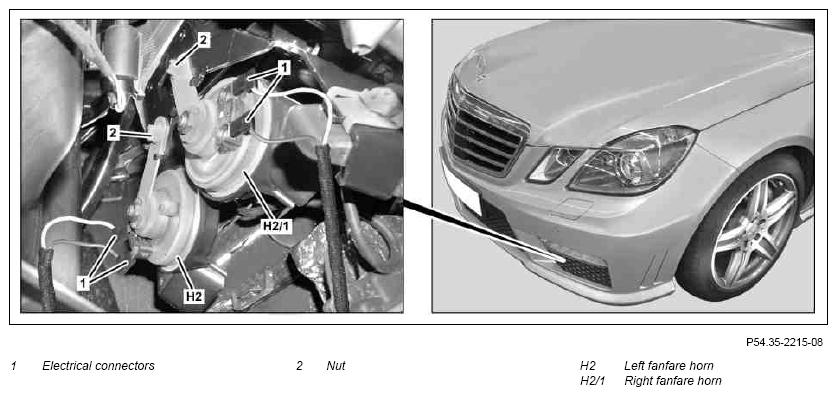

| 3 | Separate electrical connectors (1) | ||
| 4 | Unscrew nut (2) | ||
| 5 | Remove left fanfare horn (H2) or right fanfare horn (H2/1) | ||
| 6 | Install in the reverse order |
