Remove/install Parktronic system (PTS) sensors in rear bumper - AR54.65-P-0002EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 207 with CODE (220) PARKTRONIC with CODE (230) Advanced Parking Guidance
MODEL 212 with CODE (220) PARKTRONIC with CODE (230) Advanced Parking Guidance

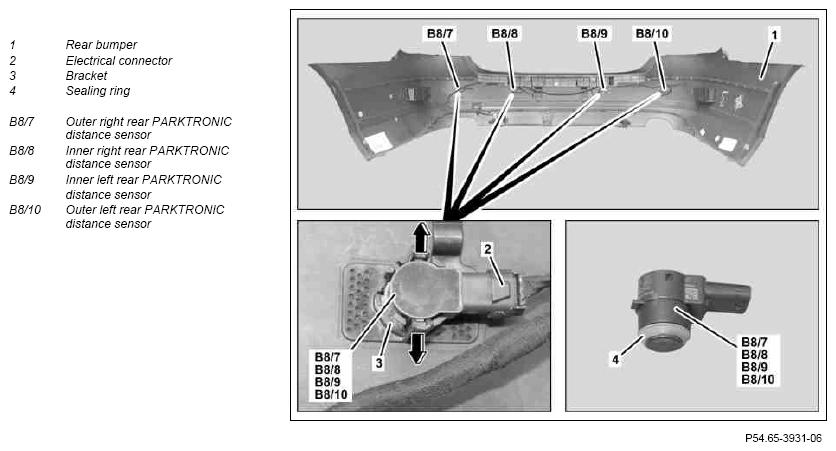

Shown on model 212.0

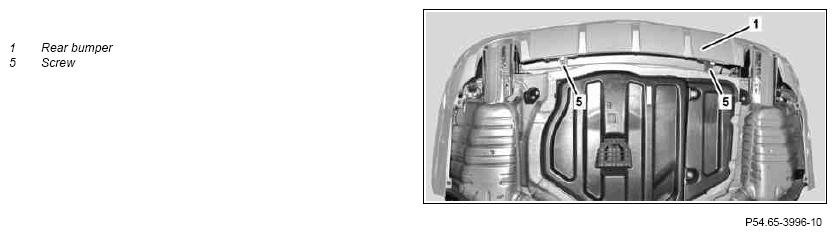

Model 207.3
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Lift vehicle on lifting platform. | Model 207, 212.2 without code (550) AHV | |
| 2.1 | Remove bolts (5) | Model 207 | |
| 2.2 | Remove rear bumper (1) | Model 212.0, 212.2 with code (550) AHV | AR88.20-P-2200EW |
| 3 | Disconnect electrical connector (2) on the appropriate distance sensor (B8/7, B8/8, B8/9 or B8/10) | ||
| 4 | Unlock locks of bracket (3) (arrows) and unclip the appropriate distance sensor (B8/7, B8/8, B8/9 or B8/10) from the bracket (3) | ||
| 5 | Remove appropriate distance sensor (B8/7, B8/8, B8/9 or B8/10) from the rear bumper (1) | ||
| 6 | Install in the reverse order |
