Charge battery - AR54.10-P-1130CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 197, 204, 207, 212, 218
Shown on model 204.0 with installed on-board electrical system battery (G1)
Shown on model 204.9 with installed on-board electrical system battery
Shown on model 197 with installed on-board electrical system battery
| Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte or due to short circuit. Risk of burn injuries due to thermal changes. Risk of poisoning from swallowing battery electrolyte. | Wear protective gloves, protective clothing and safety glasses. In the event of escaping battery electrolyte, battery vapors, battery mist, smoke or heat development, secure the area, leave it and alert the fire department. | AS54.10-Z-0001-04A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Notes for 12-V lithium-ion battery | AH54.10-P-0004-01A | ||
| Check | |||
| 1 | Check condition of on-board electrical system battery | Not with active transport mode. | |
| MODEL 197 without CODE P98 (Black Series) MODEL 204, 207, 212, 218 |
AR54.10-P-1129CW | ||
| Charging | |||
| 2.1 | Connect charger to the on-board electrical system battery | With on-board electrical system battery removed Risk of short-circuit. |
|

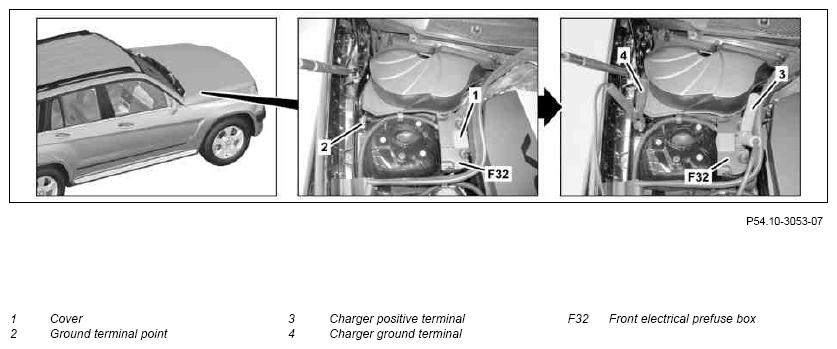

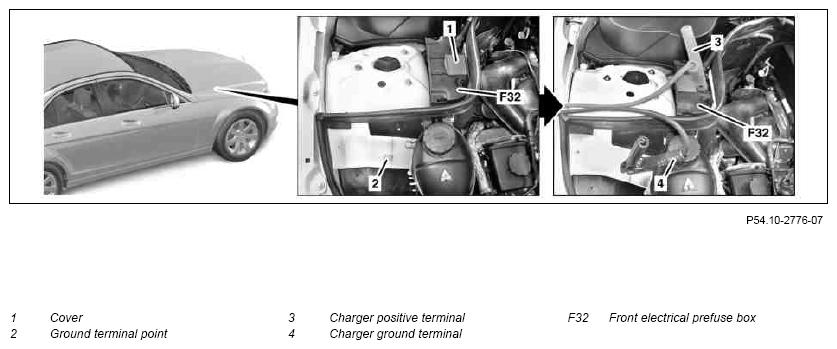

| 2.2 | Open front prefuse box (F32) by shifting covering (1) and connect positive terminal for charger (3) to charging support point for front prefuse box (F32) and ground terminal for charger (4) to ground support point (2) | With on-board electrical system battery installed Risk of short-circuit. Make sure that the vent hose and the stop plug of the on-board electrical system battery are installed correctly. because escaping battery vapor can damage the vehicle paint. |
|
| 3 | Charge on-board electrical system battery | The battery is sufficiently charged when the charging current shown is < 25A. Battery chargers |
|
| 4 | Disconnect charger from on-board electrical system battery | Risk of arcing. |
|
| Check | |||
| 5 | Check condition of on-board electrical system battery | Not with active transport mode. | |
| MODEL 197 without CODE P98 (Black Series) MODEL 204, 207, 212, 218 |
AR54.10-P-1129CW |
