Replace torque converter housing - AR27.40-P-0002EWM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 725.0
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||

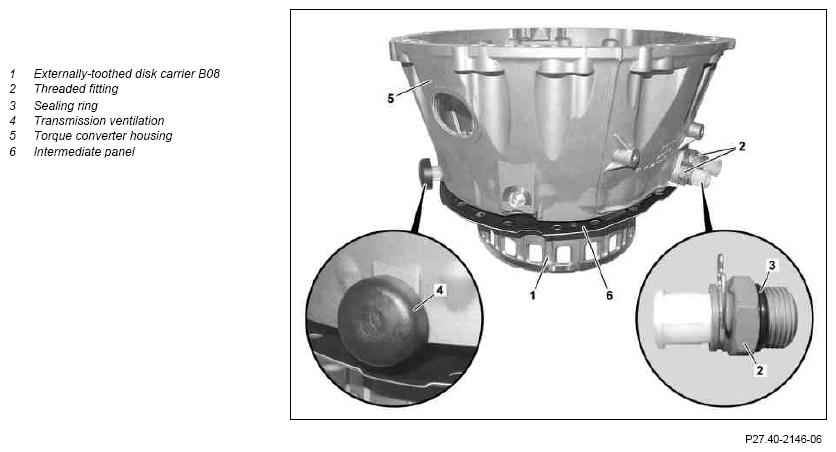

| 1 | Remove external plate carrier B08 (1) | AR27.50-P-0617EWM | |
| 2 | Remove intermediate panel (6) | ||
| 3 | Remove threaded fitting (2) | ||
| *BA27.10-P-1007-04H | |||
| 4 | Remove transmission ventilation (4) | ||
| 5 | Check torque converter housing (5) and replace, if necessary | ||
| 6 | Install in the reverse order |
COMPLETE AUTOMATIC TRANSMISSION
| Number | Designation | TRANSMISSION 725.0 | |
|---|---|---|---|
| BA27.10-P-1007-04H | Threaded fitting for oil line to torque converter housing | Nm | 40 |
