Remove/install wiper switch - AR54.25-P-0003MCC
MODEL 451.3/4
| Remove/install | |||
| 1 | Remove steering column cover | AR68.30-P-2000MCC | |

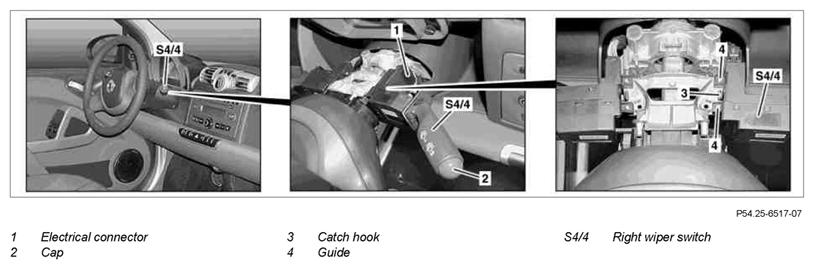

| 2 | Unclip catch hook (3) on right wiper switch (S4/4) | ||
| 3 | Lift right wiper switch (S4/4) upwards from the guides (4) and remove to one side until the electrical connector (1) is accessible | ||
| 4 | Detach electrical connector (1) on the right wiper switch (S4/4) and remove the right wiper switch (S4/4) | ||
| 5 | Release cap (2) by applying suitable knife to right wiper switch (S4/4) and remove | When replacing right wiper switch (S4/4). | |
| 6 | Install in the reverse order | ||
| 7 | Conduct function test of right wiper switch (S4/4) |
