Remove/install steering column trim - AR68.30-P-2000MCC

MODEL 451.3/4

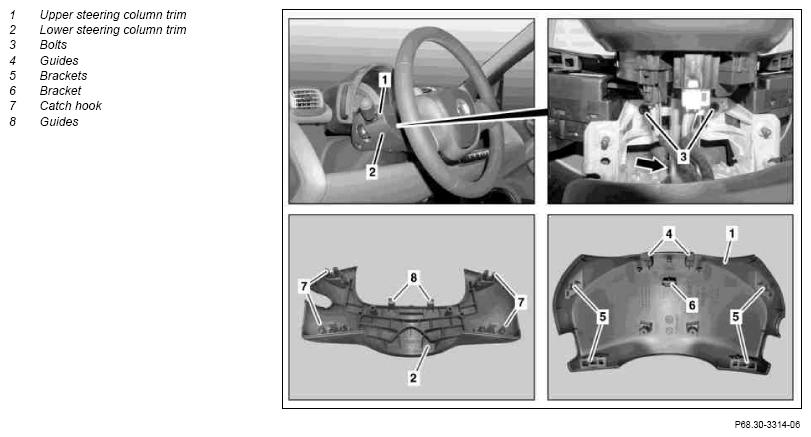

Fig 1: Identifying Steering Column Trim Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip catch hook (7) on lower steering column trim (2) from brackets (5) on upper steering column trim (1) and remove lower steering column trim (2)	First position guides (8) in area of instrument panel.
2	Unscrew bolts (3) from upper steering column trim (1)
3	Unclip bracket (6) from jacket tube in marked area (arrow) with suitable screwdriver and carefully remove upper steering column trim (1) upward	A cutout is located in the bearing shell of the jacket tube in the marked area (arrow), through which the bracket (6) is accessible. First position guides (4) in area of instrument panel.
4	Install in the reverse order
