Remove/install electric drive control unit - AR08.20-P-0020MEV
ENGINE 780.009 in MODEL 451.391/491
Electric vehicle control unit

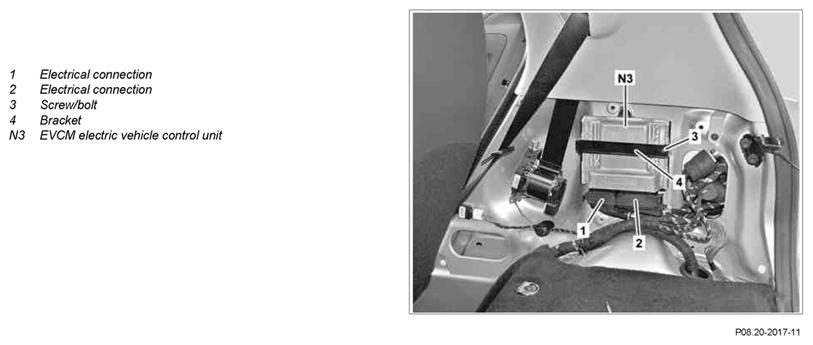

Fig 1: Identifying Electric Drive Control Unit Remove/Install Components - Electric Vehicle Control Unit
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove transmitter key and mains plug | ||
| 2 | Remove right side paneling in trunk | ENGINE 780.009 in MODEL 451.391/491 without CODE 494 (US version) |
AR68.30-P-4800MCC |
| ENGINE 780.009 in MODEL 451.391/491 with CODE 494 (US version) | AR68.30-P-4800MCU | ||
| 3 | Release and disconnect electrical connection (1) on electric vehicle EVCM control unit (N3) | ||
| 4 | Release and disconnect electrical connection (2) on electric vehicle EVCM control unit (N3) | ||
| 5 | Remove screw/bolt (3), unhook bracket (4) and remove electric vehicle EVCM control unit (N3) | ||
| 6 | Install in the reverse order | ||
| 7 | Connect external drive diagnosis tester and start up electric vehicle EVCM control unit (N3) | ||
| AD00.00-P-2003MEV |
