Remove/install rear-end door - AR72.20-P-3500MCU
MODEL 451.3
| Remove/install | |||

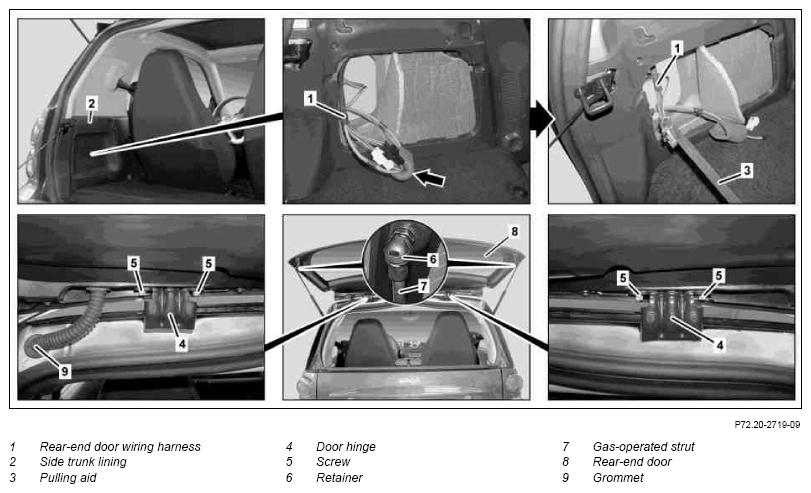

| 1 | Remove cover on left side luggage compartment paneling (2). | ||
| 2 | Guide rear-end door wiring harness (1) out of body opening | ||
| 3 | Push back foam rubber jacketing (arrow) and disconnect all electrical connectors as well as water fluid hose on rear-end door wiring harness (1). | ||
| 4 | Loosen grommet (9) on rear-end door wiring harness (1) in area of left door hinge (4). | ||
| 5 | Fasten suitable pulling out (3) on rear-end door wiring harness (1) and guide rear-end door (1) upward out of vehicle. | ||
| Risk of injury Gas pressure struts are under high pressure and can pinch and crush body parts during work | Remove and install gas pressure struts only in relaxed position and on components properly secured. | AS00.00-Z-0012-01A | |
| 6 | Lift retainers (6) with suitable screwdriver and unclip gas-operated strut (7) on rear-end door (8). | ||
| 7 | Remove bolts (5) from door hinges (4) and take off rear-end door (8). | ||
| Adjust rear-end door (8) | AR72.20-P-3510MCD | ||
| *BA72.20-P-1006-02F | |||
| 8 | Remove rear-end door wiper motor | When replacing rear-end door (8). | AR82.30-P-6900MCC |
| 9 | Remove center high-mounted brake lamp | When replacing rear-end door (8). | AR82.10-P-5375MCC |
| 10 | Remove rear spoiler | When replacing rear-end door (8). | AR88.30-P-0500MCC |
| 11 | Remove ball heads from gas-operated struts (7). | When replacing rear-end door (8). | |
| *BA72.20-P-1008-02F | |||
| 12 | Expose rear-end door wiring harness (1) on rear-end door (8) and remove. | When replacing rear-end door (8). | |
| 13 | Install in the reverse order | ||
| 14 | Check rear window heater, rear wiper system and center high-mounted brake lamp for proper function |
REAR-END DOOR
| Number | Designation | Model 451.3 | |
|---|---|---|---|
| BA72.20-P-1006-02F | Bolt, hinge to glass pane | Nm | 12 |
| BA72.20-P-1008-02F | Gas-operated spring ball head to upper rear-end door | Nm | 12 |
