Remove/install rear spoiler - AR88.30-P-0500MCC

MODEL 451.3

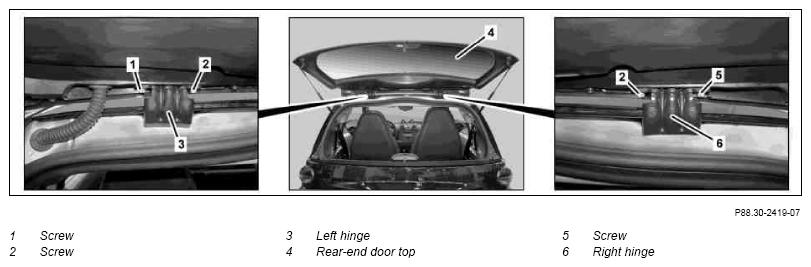

Fig 1: Identifying Rear Spoiler Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

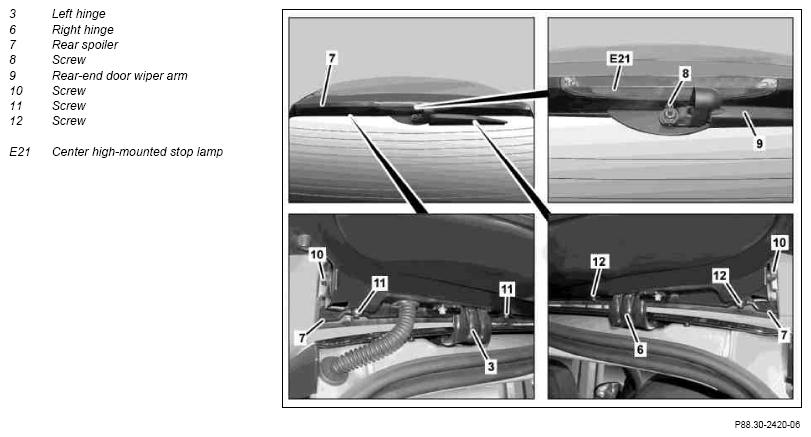

Fig 2: Identifying Rear Spoiler Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center high-mounted stop lamp (E21)		AR82.10-P-5375MCC
2	Remove rear-end door wiper arm (9)		AR82.30-P-6910MCC
3	Unscrew bolt (8) on rear spoiler (7).
4	Open rear-end door upper section (4)
5	Mark position left hinge (3) and right hinge (6) in relation to upper rear-end door (4).
6	Unscrew bolts (10) at side on rear spoiler (7).
7	Unscrew bolts (1, 2) from left hinge (3) and bolt (2) from right hinge (6).
8	Loosen bolt (5) on right hinge (6).	Do not unscrew bolt (5), otherwise the upper rear-end door (4) can be damaged by folding down. Align upper rear-end door (4) according to markings made previously and tighten bolts (1, 2, 5).
			*BA72.20-P-1006-02F
9	Carefully lift upper rear-end door (4) in area of left hinge (3) and unscrew bolts (11) on rear spoiler (7).	Helper required for unscrewing inner bolt (11).
10	Screw bolt (1) into left hinge (3).	Screw in bolt (1) only until upper rear-end door (4) is fastened.
11	Unscrew bolt (5) from right hinge (6).	Screw in bolt (5) only until upper rear-end door (4) is fastened.
12	Carefully lift upper rear-end door (4) in area of right hinge (6), unscrew bolts (12) on rear spoiler (7) and remove rear spoiler (7) with aid of helper.	Helper required for unscrewing inner bolt (12).
13	Install in the reverse order

REAR-END DOOR

Number	Designation		Model 451.3
BA72.20-P-1006-02F	Bolt, hinge to glass pane	Nm	12
