Remove/install fixed front door window - AR72.10-P-1920MCC

MODEL 451.3/4

Shown on model 451.4

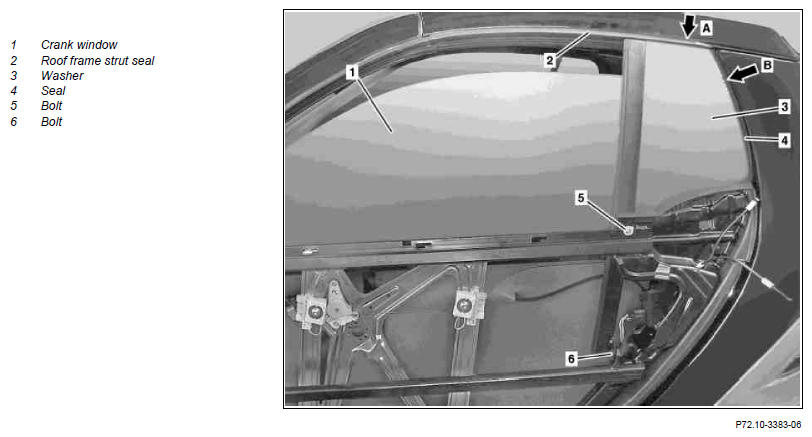

Fig 1: Identifying Fixed Front Door Window Remove/Install Components - Shown On Model 451.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove crank window (1) from front door.		AR72.10-P-1900MCC
2	Unscrew bolts (5, 6) on window (3).	Align window (3) before tightening bolts (5, 6). Adjust window (3) in area (arrow A) of roof frame strut seal (2) and in area (arrow B) of seal (4) according to gaps and recess depth.
			*BA72.10-P-1005-01H
			*BA72.10-P-1006-01H
			Figure
3	Remove window (3) upward.	When installing, do not damage window seals (3), otherwise the window (3) must be replaced.
4	Install in the reverse order

FRONT DOOR

Number	Designation		Model 451.3/4
BA72.10-P-1005-01H	Bolt, quarter window to upper door frame	Nm	10
BA72.10-P-1006-01H	Bolt, quarter window to lower door frame	Nm	10

Fig 2: Identifying Feeler Gauge (452 589 01 21 00)

Courtesy of MERCEDES-BENZ USA
