Remove/install door shell - AR72.10-P-1020MCC

MODEL 451.3/4

Shown on model 451.4 with code (V43) Power window

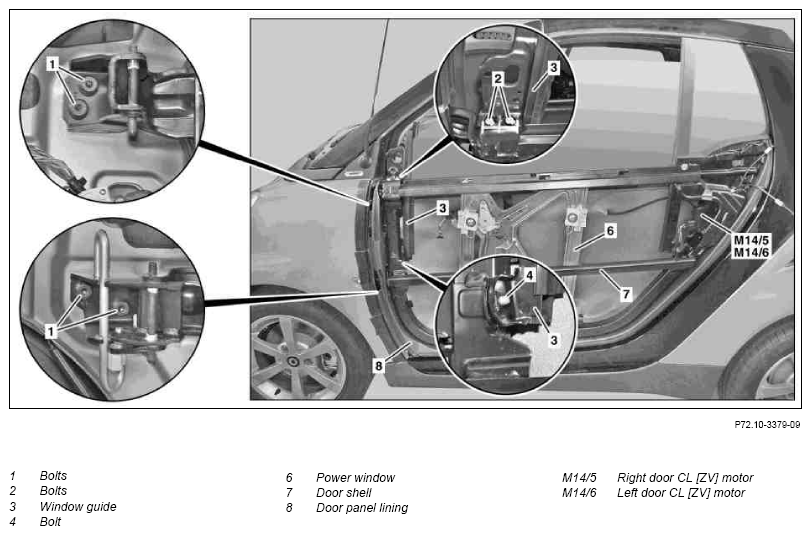

Fig 1: Identifying Door Shell Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

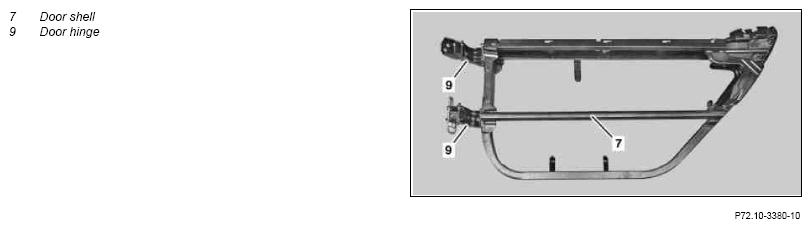

Fig 2: Identifying Door Shell Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
1	Remove service flap
2	Remove left and right longitudinal member paneling.		AR88.80-P-6000MCC
3	Partially loosen front CBS to remove door body shell (7).	Adjust front door before fastening front CBS. See: ↓	AR88.00-P-1010-04MCC
		Adjust front door	AR72.10-P-0550MCC
4	Remove door panel lining (8).		AR72.10-P-6575MCC
5	Remove power window (6)		AR72.10-P-1800MCC
6	Remove stationary window.		AR72.10-P-1920MCC
7	Unscrew bolts (2, 4) on window guide (3) of crank window and remove window guide.
8	Remove right door CL motor (M14/5) and left door CL motor (M14/6)		AR72.10-P-4011MCC
9	Carefully press front CBS to side, unscrew bolts (1) on door hinge (9) from A-pillar and remove door body shell (7).	Aid of helper required.
			*BA72.10-P-1002-01H
10	Unscrew bolts on door hinge (9) from door body shell (7) and remove door hinges (9).	When replacing door body shell (7).
			*BA72.10-P-1001-01H
11	Install in the reverse order
