Remove/install side air outlet - AR68.10-P-1100MCC

MODEL 451.3/4

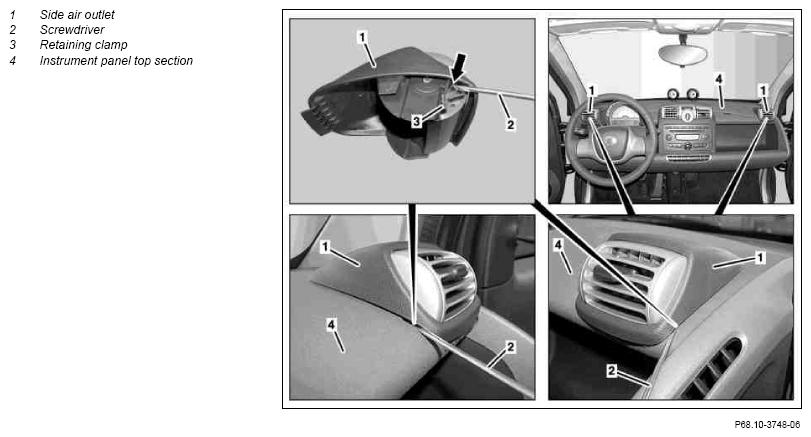

Fig 1: Identifying Side Air Outlet Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Guide suitable screwdriver (2) between instrument panel upper section (4) and side air outlet (1) and release retaining clips (3) in upper area (arrow).	Carefully loosen air outlet (1) to prevent damaging instrument panel upper section (4).
2	Carefully guide side air outlet (1) toward rear out of instrument panel upper section (4).
3	Install in the reverse order
