Retrofit rear diffuser - AZ88.30-P-0020MCC

MODEL 451.3/4 (except 451.391/491) up to 19.3.12 except CODE (P02) car2go

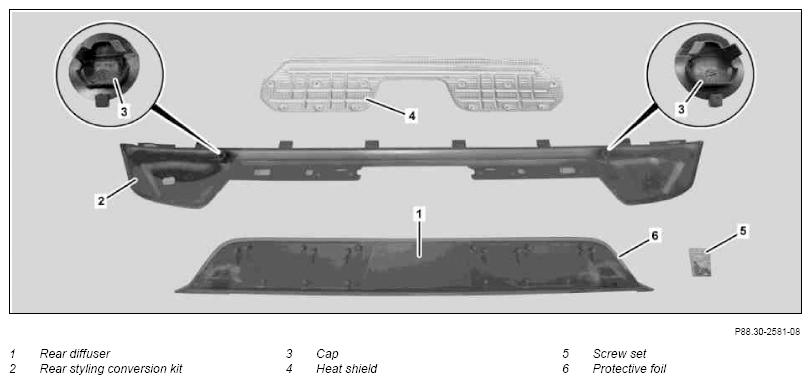

Fig 1: Identifying Rear Diffuser Related Components

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove rear apron	The rear apron is no longer required.	AR88.30-P-0502MCC
	Assemble
2	Lay rear diffuser (1) and rear styling conversion kit (2) down on suitable base
3	Slightly remove ends of protective foil (6) on adhesive tape and bend 45° in direction of outer edge of diffuser (1)
4	Clean adhesive area of rear diffuser (1) on rear styling conversion kit (2)	The bonding surface must be free of dust and grease. Cleaner	*BR00.45-Z-1025-04A
5	Screw rear diffuser (1) on to rear styling conversion kit (2) with bolts from screw set (5) so that protective foil (6) on adhesive tape can still be pulled off
6	Remove protective foil (6) from adhesive tape on rear diffuser (1)
7	Tighten rear diffuser (1) to rear styling conversion kit (2)
8	Press rear diffuser (1) to rear styling conversion kit (2) in area of adhesive tape.
9	Tighten heat shield (4) with bolts from screw set (5) to rear styling conversion kit (2) and rear diffuser (1)
	Install
10	Install rear styling conversion kit (2) with rear diffuser (1)	The rear styling conversion kit (2) with rear diffuser (1) replaces the standard rear apron. Before installing, paint primed caps (3), rear diffuser (1) and rear styling conversion kit (2) according to customer request.	AR88.30-P-0502MCC
11	Clip caps (3) into rear styling conversion kit (2)
12	Enter retrofitted equipment in Vehicle Documentation (VeDoc)	Attach note "Rear diffuser retrofitted according to AZ88.30-P-0020MCC " .
13	Place certification in the vehicle	* Applies to Europe only
	Rear apron, certification	* Applies to Europe only	OF64.20-P-1000-01A
