Remove/install rear apron - AR88.30-P-0502MCC

MODEL 451.3/4

Shown on vehicle as of 20.3.12

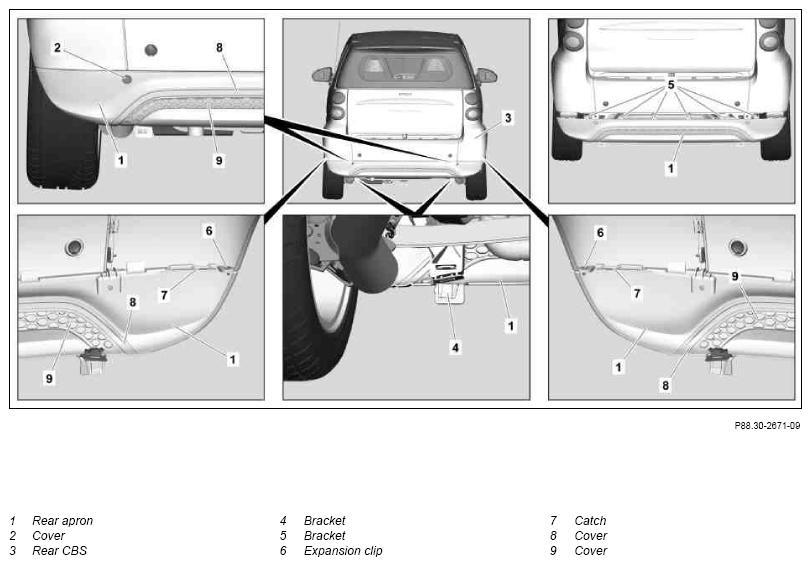

Fig 1: Identifying Rear Apron Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Unclip cover (2) on left and right on rear apron (1) and unscrew bolts below
2	Remove expansion clip (6) on rear apron (1) on left and right	Check expansion clips (6) for damage, replace if necessary.
3	Loosen rear apron (1) from brackets (4)
4	Loosen catches (7) on rear apron (1)
5	Unhook bracket (5) on rear apron (1) from rear CBS (3) and remove rear apron (1)
6	Unclip cover (8) and remove	MODEL 451.3/4 with CODE A02 (pulse) MODEL 451.3/4 with CODE A03 (passion) When replacing rear apron (1), cover (8) or paneling (9).
7	Unclip and remove molding (9)	MODEL 451.3/4 with CODE A03 (passion) MODEL 451.3/4 with CODE A02 (pulse) When replacing rear apron (1), cover (8) or paneling (9).
8	Install in the reverse order
