Retrofit BRABUS rear spoiler - AN88.50-P-0003MCC

MODEL 451.3 (except 451.39)

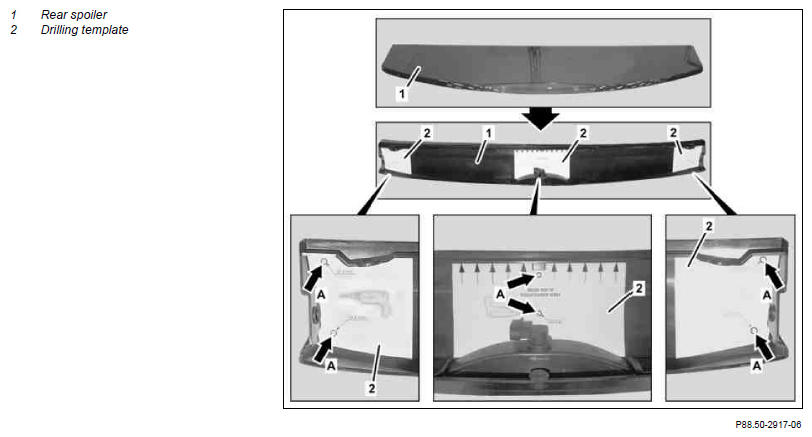

Fig 1: Locating Rear Spoiler And Drilling Template

Courtesy of MERCEDES-BENZ USA

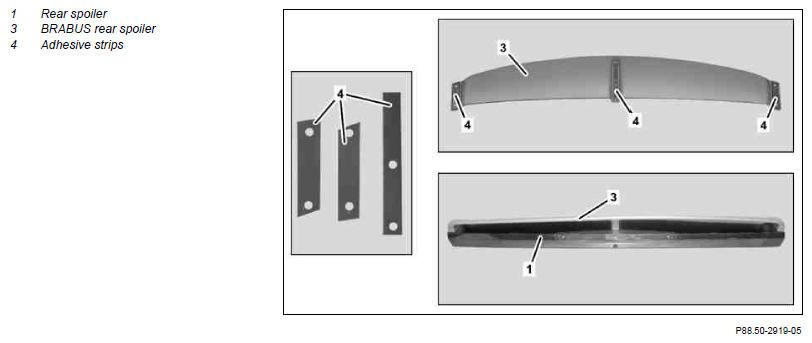

Fig 2: Identifying Rear Spoiler, BRABUS Rear Spoiler And Adhesive Strips

Courtesy of MERCEDES-BENZ USA

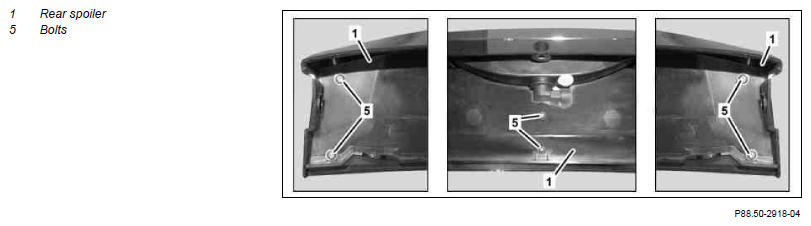

Fig 3: Identifying Rear Spoiler And Bolts

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Rear Spoiler And BRABUS Rear Spoiler

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove rear spoiler (1)		AR88.30-P-0500MCC
	Install
2	Cut out drilling templates (2) included in delivery contents along marking and fix in place on rear spoiler (1) from inside with suitable adhesive tape as shown
3	Drill holes with diameter of 5 mm, corresponding to markings (arrows A) along drilling templates (2) on rear spoiler (1)	Twist drill bit set	Fig 5
		Rechargeable drill/screwdriver
4	Remove drilling templates (2)
5	Clean gluing surfaces on BRABUS rear spoiler (3) and rear spoiler (1)	The contact surfaces must be free of dust and grease, otherwise the adhesive force of the adhesive strips (4) starts to decrease.
6	Remove white protective foil from adhesive strips (4) and glue adhesive strips (4) to contact surfaces on BRABUS rear spoiler (3)	The installation position for the outer adhesive strips (4) is dictated by their shape. Do not yet remove red protective foil.
7	Tighten BRABUS rear spoiler (3) to rear spoiler (1) with bolts (5) included in delivery contents
8	Check installation position of BRABUS rear spoiler (3), if applicable slightly cut out drill holes	The holes should not be greater than 7 mm. Otherwise it is not possible to assemble the BRABUS rear spoiler (3) correctly and the rear spoiler (1) must be replaced. Rechargeable drill/screwdriver
9	Unscrew bolts (5) and remove BRABUS rear spoiler (3)
10	Remove red protective foil from adhesive strips (4)
11	Align rear spoiler (1) at left side above BRABUS rear spoiler (3) and carefully tighten with two bolts (5)	Aid of helper required. Ensure that the rear spoiler (1) is not pressed down on the adhesive strips (4) on the BRABUS rear spoiler (3). Screw bolts (5) in two turns only.
12	Fix rear spoiler (1) in place in center area on BRABUS rear spoiler (3) with two bolts (5)	Aid of helper required. Ensure that the rear spoiler (1) is not pressed down on the adhesive strips (4) on the BRABUS rear spoiler (3). Screw bolts (5) in two turns only.
13	Fix rear spoiler (1) at right rear on BRABUS rear spoiler (3) with two bolts (5) and tighten all bolts (5)
14	Install rear spoiler (1)		AR88.30-P-0500MCC

Fig 5: Identifying Twist Drill Bit Set (450 589 01 70 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 98	Rear spoiler
