Remove/install floor covering - AR68.20-P-2040MCU
MODEL 451.3/4
| Remove/install | |||
| 1 | Remove driver seat | AR91.10-P-1010MCU | |
| 2 | Remove passenger seat | AR91.10-P-1020MCU | |
| 3 | Remove bass module speaker | On vehicles with code (C54) Sound system 2 or On vehicles as of 31.8.10 with code (C17) smart surround sound system | AR82.62-P-7839MCC |
| 4 | Remove electronic accelerator pedal | AR30.20-P-2000MCC | |
| 5 | Remove pedal assembly seal | AR29.10-P-0341MCC | |
| 6 | Remove vertical strut paneling | AR68.00-P-1500MCC | |
| 7 | Remove center console | AR68.20-P-2000MCU | |

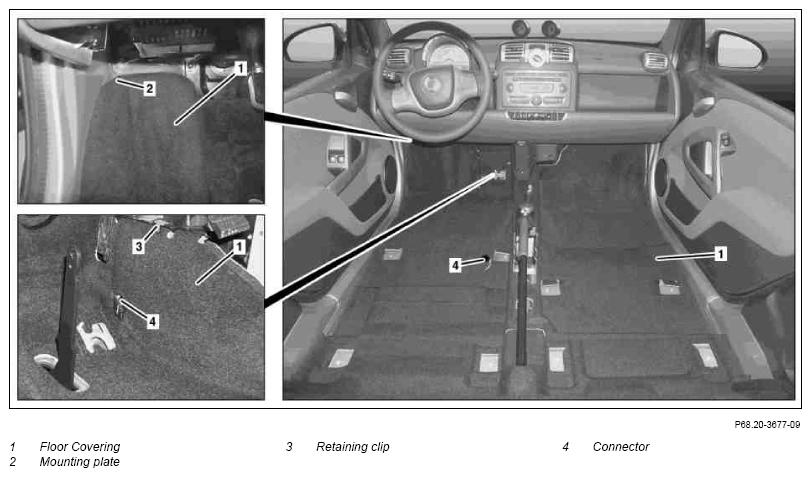

| 8 | Remove mounting plate (2) | ||
| 9 | Loosen retaining clip (3) on floor covering (1) on heater/AC housing | ||
| 10 | Slightly lift floor covering (1) and guide connector (4) through openings in floor covering (1) | ||
| 11 | Remove floor covering (1) from vehicle | ||
| 12 | Install in the reverse order |
