Retrofit Bluetooth hands-free system - AZ82.70-P-0016MCD

MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10

with CODE 516 (RADIO WITH USB INTERFACE)

without CODE P02 (car2go)

Installation of a telephone system/Bluetooth hands-free system with display

MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10

with CODE C50 (smart radio 10)

without CODE P02 (car2go)

Installation of a telephone system/Bluetooth hands-free system with display

MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10

with CODE C57 (smart radio 9)

without CODE P02 (car2go)

Installation of a telephone system/Bluetooth hands-free system with display

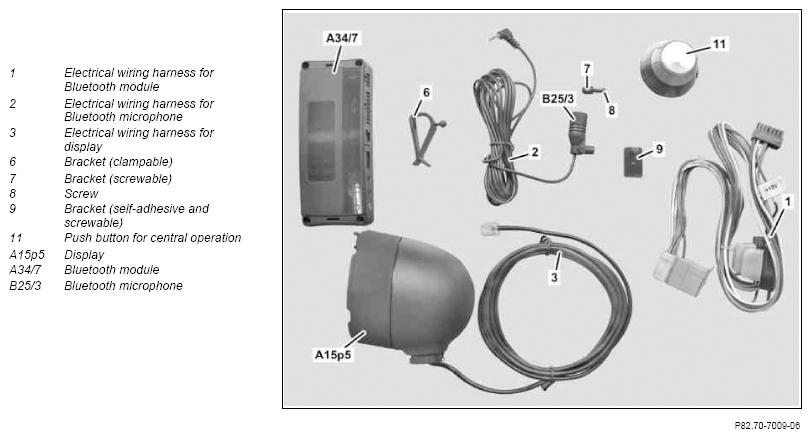

Package contents of hands-free system

Fig 1: Identifying Bluetooth Hands-Free System Related Components - Package Contents Of Hands-Free System
G10979267Courtesy of MERCEDES-BENZ USA

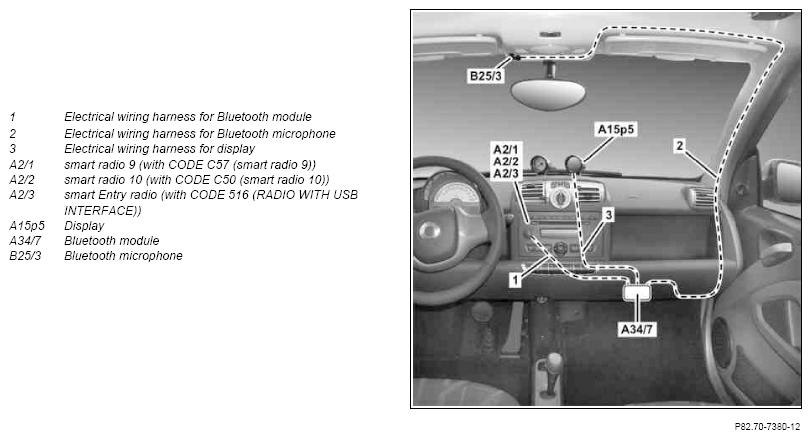

Routing diagram for vehicles without CODE 41Z (AUX jack), without CODE C15 (Navigation unit (DFO/FFO)), without CODE C60 (Portable smart navigation system), without CODE C54 (Sound system 2)

Fig 2: Bluetooth Hands-Free System Routing Diagram - Vehicles Without Codes (41Z, C15, C60, C54)
G10979268Courtesy of MERCEDES-BENZ USA

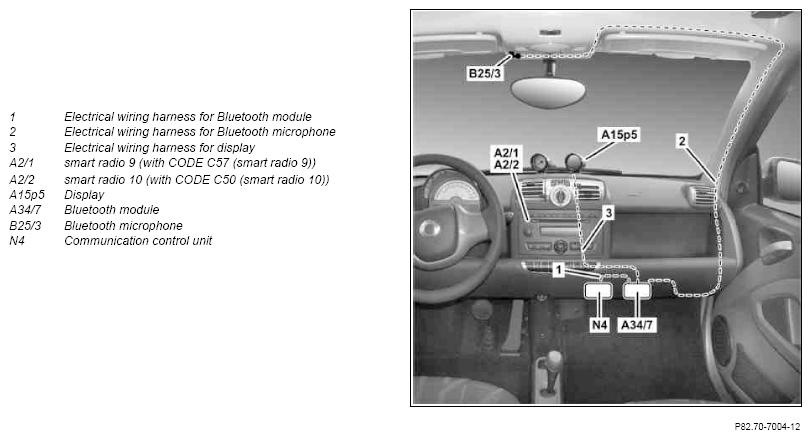

Routing diagram for vehicles with CODE 41Z (AUX jack), with CODE C15 (Navigation unit (DFO/FFO)), with CODE C60 (Portable smart navigation system) and with CODE C54 (Sound system 2)

Fig 3: Bluetooth Hands-Free System Routing Diagram - Vehicles With Codes (41Z, C15, C60, C54)
G10979269Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Move front passenger seat toward rear
2 Remove smart radio 9 (A2/1), smart radio 10 (A2/2) or smart Entry radio (A2/3)
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
without CODE 494 (US version)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR82.60-P-7502MCC
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 494 (US version)
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C50 (smart radio 10)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C57 (smart radio 9)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR82.60-P-7502MCU
3 Remove front roof frame paneling
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 31.08.10
with CODE 516 (RADIO WITH USB INTERFACE)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.3 (except 451.39) up to 30.08.10
with CODE C50 (smart radio 10)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.3 (except 451.39) up to 30.08.10
with CODE C57 (smart radio 9)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display		 AR68.30-P-4450MCC
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 31.08.10
with CODE 494 (USA version)
with CODE 516 (RADIO WITH USB INTERFACE)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.3 (except 451.39) up to 30.08.10
with CODE 494 (USA version)
with CODE C50 (smart radio 10)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.3 (except 451.39) up to 30.08.10
with CODE 494 (USA version)
with CODE C57 (smart radio 9)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display		 AR68.30-P-4450MCU
REFER TO TESTING & REPAIR   MODEL 451.4 (except 451.49) as of 31.08.10
with CODE 516 (RADIO WITH USB INTERFACE)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.4 (except 451.49) up to 30.08.10
with CODE C50 (smart radio 10)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.4 (except 451.49) up to 30.08.10
with CODE C57 (smart radio 9)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display		 AR68.30-P-4450MCO
REFER TO TESTING & REPAIR   MODEL 451.4 (except 451.49) as of 31.08.10
with CODE 494 (USA version)
with CODE 516 (RADIO WITH USB INTERFACE)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.4 (except 451.49) up to 30.08.10
with CODE 494 (USA version)
with CODE C50 (smart radio 10)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.4 (except 451.49) up to 30.08.10
with CODE 494 (USA version)
with CODE C57 (smart radio 9)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
 		 AR68.30-P-4450MCV
4 Remove paneling on right A-pillar
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 31.08.10, 451.4 (except 451.49) as of 31.08.10
with CODE 516 (RADIO WITH USB INTERFACE)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10
with CODE C50 (smart radio 10)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10
with CODE C57 (smart radio 9)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display		 AR68.30-P-4050MCC
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 31.08.10, 451.4 (except 451.49) as of 31.08.10
with CODE 494 (USA version)
with CODE 516 (RADIO WITH USB INTERFACE)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10
with CODE 494 (USA version)
with CODE C50 (smart radio 10)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display
MODEL 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10
with CODE 494 (USA version)
with CODE C57 (smart radio 9)
except CODE P02 (car2go) Installation of a Telephone system/Bluetooth Hands-free Car Kit with Display		 AR68.30-P-4050MCU
5 Remove additional instrument MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display		 AR54.30-P-6080MCC
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR54.30-P-6080MCF
INSTALLING Install
6 Retrofit communication control unit (N4) Model 451.3 (except 451.39) until 30.08.10, 451.4 (except 451.49) until 30.08.10 with CODE 41Z (AUX jack) and with CODE C15 (Navigation unit (DFO/FFO)) and with CODE C54 (Sound system 2) and with CODE C60 (Portable smart navigation system). AZ82.60-P-0021-02MCC
7 Install Bluetooth microphone (B25/3) and route electrical wiring harness for Bluetooth microphone (2) in front passenger footwell   AZ82.70-P-0005-08MCD
8 Retrofit display (A15p5) MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AZ82.70-P-0005-10MCC
    MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display
IMPORTANT In vehicles without CODE V31 (Cockpit clock and tachometer package) the display (A15p5) can be installed to the left or right of the additional instrument holder upon customer request.		 AZ82.70-P-0005-10MCD
9 Install additional instruments MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR54.30-P-6080MCC
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR54.30-P-6080MCF
10 Retrofit additional instruments MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
with CODE V31 (Cockpit clock and tachometer package)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AZ54.30-P-0001MCD
11 Retrofit electrical wiring harness for Bluetooth module (1), electrical wiring harness for Bluetooth microphone (2) and electrical wiring harness for display (3) Model 451.3 (except 451.39) as of 31.08.10, 451.4 (except 451.49) as of 31.08.10 with CODE 516 (RADIO WITH USB INTERFACE) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE C50 (smart radio 10) except CODE 41Z (AUX jack) except CODE C15 (Navigation unit (DFO/FFO)) except CODE C54 (Sound system 2) except CODE C60 (Portable smart navigation system) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE C57 (smart radio 9) except CODE 41Z (AUX jack) except CODE C15 (Navigation unit (DFO/FFO)) except CODE C54 (Sound system 2) except CODE C60 (Portable smart navigation system) except CODE P02 (car2go) Installation of telephone system/Bluetooth hands-free system with display AZ82.70-P-0005-02MCC
    Model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE 41Z (AUX jack) with CODE C50 (smart radio 10) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE 41Z (AUX jack) with CODE C57 (smart radio 9) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE C15 (Navigation unit (DFO/FFO)) with CODE C50 (smart radio 10) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE C15 (navigation unit (DFO/FFO)) with CODE C57 (smart radio 9) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE C50 (smart radio 10) with CODE C54 (Sound system 2) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE C50 (smart radio 10) with CODE C60 (Portable smart navigation system) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE C54 (Sound system 2) with CODE C57 (smart radio 9) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display, model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE C57 (smart radio 9) with CODE C60 (Portable smart navigation system) except CODE P02 (car2go) installation of telephone system/Bluetooth hands-free system with display
NOTES
Ensure that the Bluetooth module electrical wiring harness (1), the Bluetooth microphone electrical wiring harness (2) and the display electrical wiring harness (3) are not damaged by chafing, pinching or crushing.
Otherwise they must be replaced.		 AZ82.70-P-0005-02MCD
12 Connect electrical wiring harness for Bluetooth module (1) to communications control unit (N4) Model 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10 with CODE 41Z (AUX jack) and with CODE C15 (Navigation unit (DFO/FFO)) and with CODE C54 (Sound system 2) and with CODE C60 (Portable smart navigation system). AZ82.60-P-0021-03MCC
13 Retrofit Bluetooth module (A34/7)   AZ82.70-P-0005-04MCD
14 Install smart radio 9 (A2/1), smart radio 10 (A2/2) or smart Entry radio (A2/3)
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
without CODE 494 (US version)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR82.60-P-7502MCC
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 494 (US version)
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C50 (smart radio 10)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C57 (smart radio 9)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR82.60-P-7502MCU
15 Install trim at right A-pillar
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10 with CODE 516 (RADIO WITH USB INTERFACE)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
without CODE 494 (US version)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR68.30-P-4050MCC
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 494 (US version)
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3
(except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C50 (smart radio 10)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C57 (smart radio 9)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display
NOTES
Ensure that the Bluetooth microphone electrical wiring harness (2) is not damaged by chafing, pinching or crushing.
Otherwise the Bluetooth microphone electrical wiring harness (2) with the Bluetooth microphone (B25/3) must be replaced.		 AR68.30-P-4050MCU
16 Install front roof frame paneling
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10
with CODE C50 (smart radio 10)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10
with CODE C57 (smart radio 9)
without CODE 494 (US version)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR68.30-P-4450MCC
REFER TO TESTING & REPAIR   MODEL 451.3 (except 451.39) as of 8/31/10 with CODE 494 (US version)
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10
with CODE 494 (US version)
with CODE C50 (smart radio 10)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10
with CODE 494 (US version)
with CODE C57 (smart radio 9)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR68.30-P-4450MCU
REFER TO TESTING & REPAIR   MODEL 451.4 (except 451.49) as of 8/31/10
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.4 (except 451.49) up to 8/30/10
with CODE C50 (smart radio 10)
without CODE 494 (US version)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.4
(except 451.49) up to 8/30/10
with CODE C57 (smart radio 9)
without CODE 494 (US version)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR68.30-P-4450MCO
REFER TO TESTING & REPAIR   MODEL 451.4 (except 451.49) as of 8/31/10
with CODE 494 (US version)
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C50 (smart radio 10)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C57 (smart radio 9)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AR68.30-P-4450MCV
17 Retrofit push button for central operation (11) MODEL 451.3 (except 451.39) as of 31.08.10, 451.4 (except 451.49) as of 31.08.10
with CODE 516 (RADIO WITH USB INTERFACE)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with Display
MODEL 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10
with CODE C50 (smart radio 10)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with Display
MODEL 451.3 (except 451.39) up to 30.08.10, 451.4 (except 451.49) up to 30.08.10
with CODE C57 (smart radio 9)
except CODE 494 (USA version)
except CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with Display
 		 AZ82.70-P-0005-11MCC
    MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10
with CODE 494 (US version)
with CODE 516 (RADIO WITH USB INTERFACE)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C50 (smart radio 10)
without CODE P02 (car2go)
Installation of a telephone system/Bluetooth hands-free system with display MODEL 451.3 (except 451.39) up to 8/30/10, 451.4 (except 451.49) up to 8/30/10
with CODE 494 (US version)
with CODE C57 (smart radio 9)
without CODE P02 (car2go) Installation of a telephone system/Bluetooth hands-free system with display		 AZ82.70-P-0005-11MCU
    IMPORTANT Agree on the exact position of the push button for central operation (11) with the customer before installation.
18 Reset front passenger seat to original position
19 Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc) IMPORTANT
  • Add Bluetooth hands-free system.

20 Document retrofitted equipment in VeDoc IMPORTANT Attach note "Bluetooth hands-free system retrofitted as per AZ82.70-P-0016MCD " under field organization text .
21 Perform function test
PARTS ORDERING NOTES

Part no. Designation Quantity
KG 98 Telephone system/Bluetooth hands-free system 1
  In vehicles as of 31.8.10
KG 98 Wiring harness for telephone system/Bluetooth hands-free system 1
  In vehicles until 30.8.10 without code (V31) Cockpit clock and tachometer package
KG 98 Retaining plate/hands-free system 1
KG 54 Additional instruments trim 1
  In vehicles until 30.8.10 with CODE (41Z) AUX jack and with CODE (C15) Navigation unit (DFO/FFO) and with CODE (C60) Portable smart navigation system and with CODE (C54) Sound system 2
KG 98 Communication control unit 1
  On vehicles as of 31.8.10 without code (V31) Cockpit and tachometer package
KG 54 Additional instruments 1
KG 54 Screw 1
KG 54 Cover 1
scientia non olet · About LEMON Manuals
