Retrofit additional instruments - AZ54.30-P-0001MCD

MODEL 451.3 (except 451.39) as of 8/31/10, 451.4 (except 451.49) as of 8/31/10

without CODE P02 (car2go)

Parts scope for additional instrument (A15)

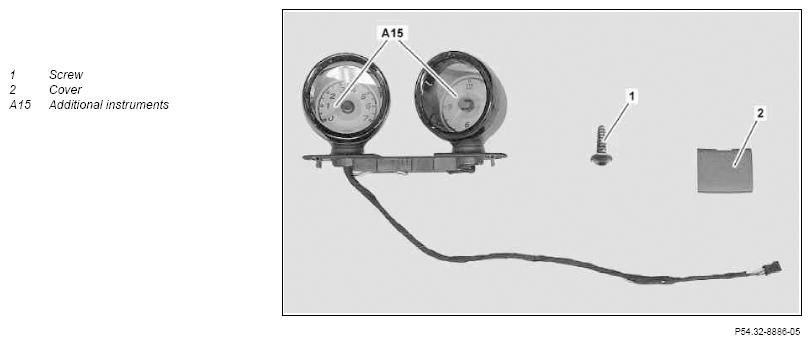

Fig 1: Identifying Screw, Cover And Additional Instruments - Parts Scope For Additional Instrument (A15)

Courtesy of MERCEDES-BENZ USA

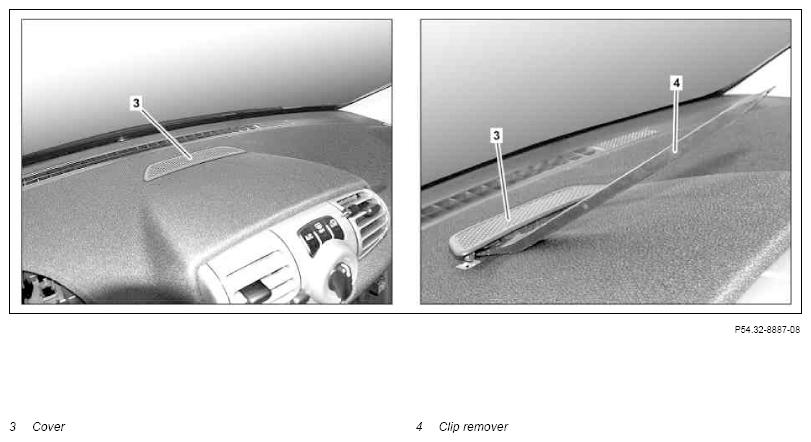

Fig 2: Releasing Cover Using Clip Remover

Courtesy of MERCEDES-BENZ USA

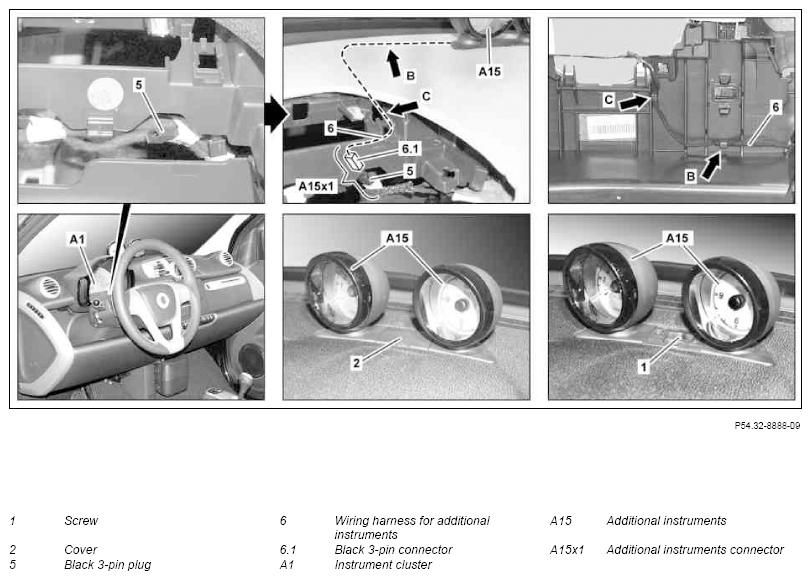

Fig 3: Identifying Additional Instruments Related Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Adjust driver seat to the rear
2	Remove instrument cluster (A1)
		MODEL 451.3/4 as of 8/31/10 without CODE 494 (US version) without CODE P02 (car2go)	AR54.30-P-6015MCC
		MODEL 451.3/4 as of 8/31/10 with CODE 494 (US version) without CODE P02 (car2go)	AR54.30-P-6015MCU
3	Release cover (3) using clip remover (4), as shown, and remove	Clip remover	Fig 4
	Install
4	Slide additional instrument wiring harness (6) through opening on left and under cover (3) toward instrument cluster (A1)
5	Clip additional instruments (A15) into instrument panel
6	Bend into footwell and route additional instrument wiring harness (6) at bottom of instrument panel upper part toward instrument cluster (A1)
7	Hook wiring harness for additional instruments (6) into holders (arrow C and B) at bottom on instrument panel upper section
8	Detach black, 3-pin connector (5) from vehicle wiring harness in area of instrument cluster (A1)
9	Connect black, 3-pin connector (5) and black, 3-pin coupling (6.1) of wiring harness for additional instruments (6)	The additional instruments connector (A15x1) is now complete.
10	Use bolt (1) to tighten additional instruments (A15)
11	Clip cover (2) over the bolt (1) on the additional instruments (A15)
12	Move driver seat back to its default position
13	Install in the reverse order
14	Set clock of additional instruments (A15)
15	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	Enter CODE V31 (Cockpit and tachometer package).
16	Document retrofitted equipment in VeDoc	Attach a note "Additional instrument retrofitted as per AZ54.30-P-0001MCD " under field organization texts .
17	Perform function test

Fig 4: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
