Remove/install outside mirror trim - AR88.70-P-9040MCC

MODEL 451.3/4

Shown on vehicle without code (V21) Electrically adjustable and heated outside mirrors (FFO)

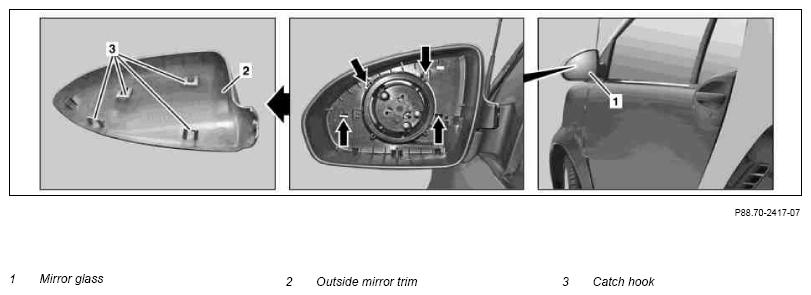

Fig 1: Identifying Outside Mirror Trim Remove/Install Components - Shown On Vehicle Without Code (V21)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove mirror glass (1)		AR88.70-P-9020MCC
2	Loosen catches (arrows) between outside mirror and outside mirror trim (2).	Do not damage outside mirror trim (2), otherwise outside mirror trim (2) must be replaced.
3	Remove outside mirror trim (2)
4	Install in the reverse order
