Remove/install mirror glass - AR88.70-P-9020MCC
MODEL 451.3/4
| Remove/install | |||

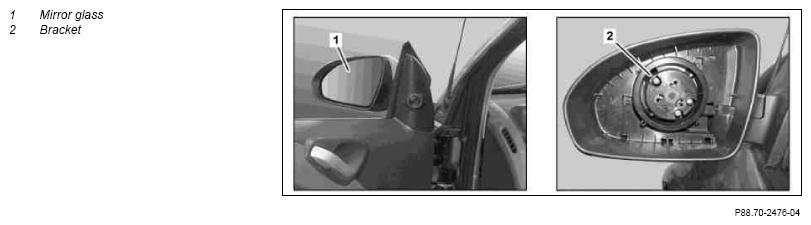

| 1 | Unclip mirror glass (1) from bracket (2) on outside mirror. | ||
| 2.1 | Remove mirror glass (1) | On vehicles without code (V21) Electrically adjustable and heated outside mirrors (FFO) | |
| 2.2 | Remove mirror glass (1) until electrical connector on mirror glass (1) is accessible. | On vehicles with code (V21) Electrically adjustable and heated outside mirrors (FFO) | |
| 3 | Disconnect electrical connector on mirror glass (1) and remove mirror glass (1). | On vehicles with code (V21) Electrically adjustable and heated outside mirrors (FFO) | |
| 4 | Install in the reverse order |
