Remove/install side roof frame paneling - AR68.30-P-4480MCU
MODEL 451.3
Shown on vehicle with code (I52) Head airbag, left side of vehicle

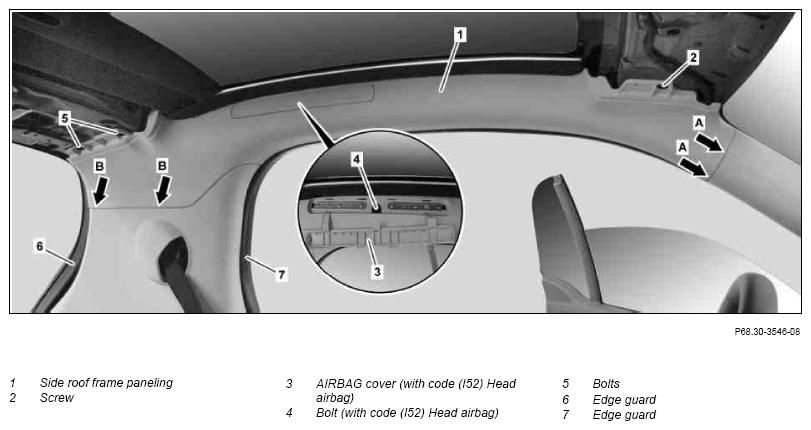

Fig 1: Identifying Side Roof Frame Paneling Remove/Install Components - Shown On Vehicle With Code (I52) Head Airbag (1 Of 2)

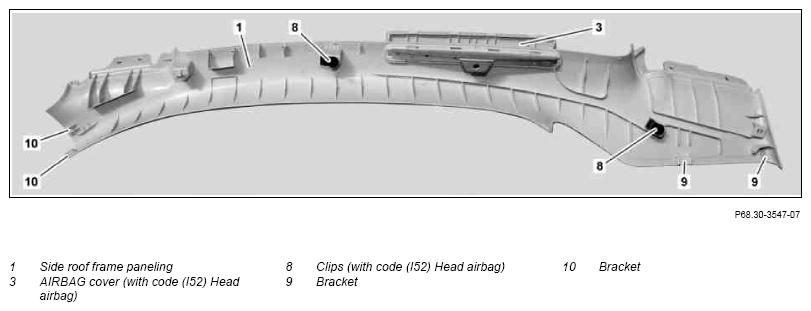

Fig 2: Identifying Side Roof Frame Paneling Remove/Install Components - Shown On Vehicle With Code (I52) Head Airbag (2 Of 2)
| Remove/install | |||
| 1 | Remove rear roof frame trim | AR68.30-P-4470MCC | |
| 2 | Unscrew bolts (5) from side roof frame paneling (1) | ||
| 3 | Loosen edge guard (6) in rear area of side roof frame paneling (1) | ||
| 4 | Unhook bracket (9) from recesses (arrows B) | ||
| 5 | Remove front roof frame paneling | AR68.30-P-4450MCU | |
| 6 | Unscrew bolt (2) from side roof frame paneling (1) | ||
| 7 | Loosen edge guard (7) in area of side roof frame paneling (1) | ||
| 8 | Unclip side roof paneling (1) | On vehicles without code (I52) Head airbag | |
| 9 | Unclip AIRBAG cover (3) | On vehicles with code (I52) Head airbag | |
| 10 | Unscrew bolt (4) | On vehicles with code (I52) Head airbag | |
| 11 | Pivot out side roof frame paneling (1) until clips (8) can be detached | On vehicles with code (I52) Head airbag | |
| 12 | Detach clips (8) with clip remover | On vehicles with code (I52) Head airbag | |
| Figure | |||
| 13 | Unhook brackets (10) for cutout (arrows A) | ||
| 14 | Remove side roof frame paneling (1) | ||
| 15 | Install in the reverse order |
