Remove/install center stowage compartment - AR68.10-P-1620MCC

MODEL 451.3/4 up to 30.8.10

except CODE (C50) smart radio 10

except CODE (C57) smart radio 9

except CODE (527) High-Line radio

except CODE (P02) car2go

MODEL 451.3/4 as of 31.8.10

with CODE (516) RADIO WITH USB INTERFACE

except CODE (P02) car2go

Vehicles up to 30.8.10

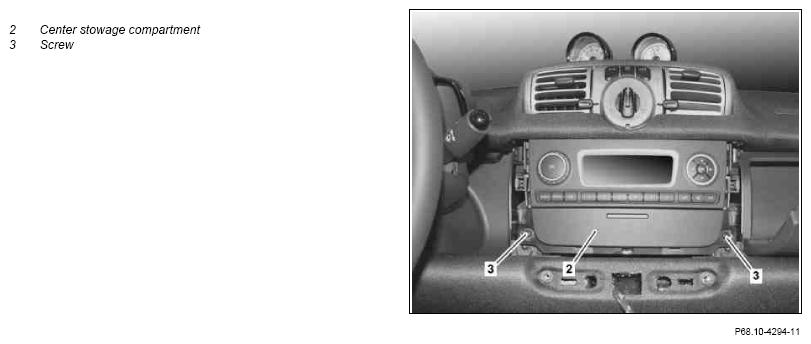

Fig 1: Identifying Center Stowage Compartment Remove/Install Components - Vehicles Up To 30.8.10

Courtesy of MERCEDES-BENZ USA

Vehicles as of 31.8.10 without code (P02) car2go

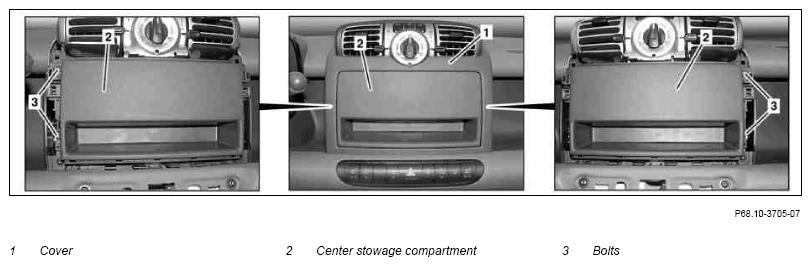

Fig 2: Identifying Center Stowage Compartment Remove/Install Components - Vehicles As Of 31.8.10 Without Code (P02) Car2Go

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover (1) on center console	Vehicles up to 30.8.10	AR68.20-P-2350MCC
		Vehicles as of 31.8.10	AR68.20-P-2350MCF
2	Unscrew bolts (3) from center stowage compartment (2)
3	Remove center stowage compartment (2)
4	Install in the reverse order
