Remove/install cover on center console - AR68.20-P-2350MCF
MODEL 451.3/4 as of 31.8.10 except CODE (P02) car2go
Shown on vehicle with code (516) RADIO WITH USB INTERFACE

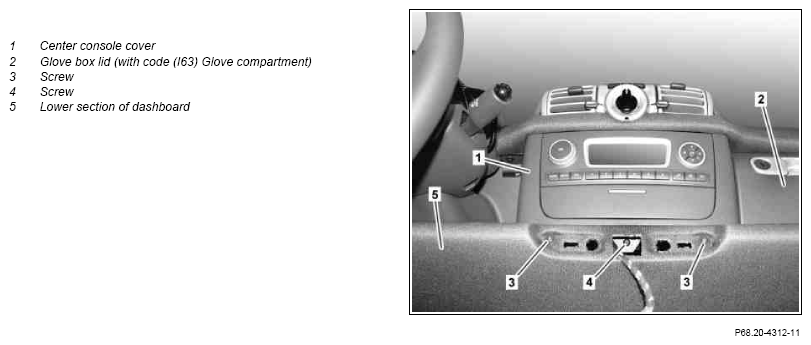

Fig 1: Identifying Center Console Cover Remove/Install Components - Shown On Vehicle With Code (516)
| Remove/install | |||
| 1 | Remove cockpit switch group | AR54.25-P-1000MCC | |
| 2 | Unscrew bolts (3) from dashboard lower section (5) | ||
| 3 | Unscrew bolt (4) from center console cover (1) | ||
| 4 | Open glove compartment cover (2) | On vehicles with code (I63) Glove box | |
| 5 | Unclip center console cover (1) in the upper area | ||
| 6 | Carefully pull instrument panel lower section (5) downward and pivot center console cover (1) out toward out and remove | ||
| 7 | Install in the reverse order |
