Remove/install rear soft top retaining clip - AR77.30-P-1151MCO
MODEL 451.4
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove/install | |||
| 1 | Remove paneling on C-pillar | AR68.30-P-4505MCO | |

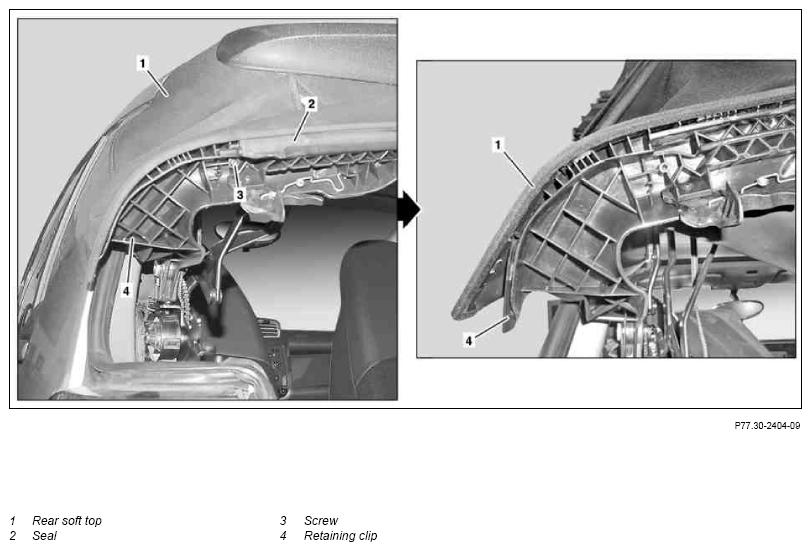

| 2 | Fold up tensioning strap (4) | ||
| 3 | Remove screws/bolts (3) | ||
| 4 | Pull seal (2) out of tensioning strap (4) | ||

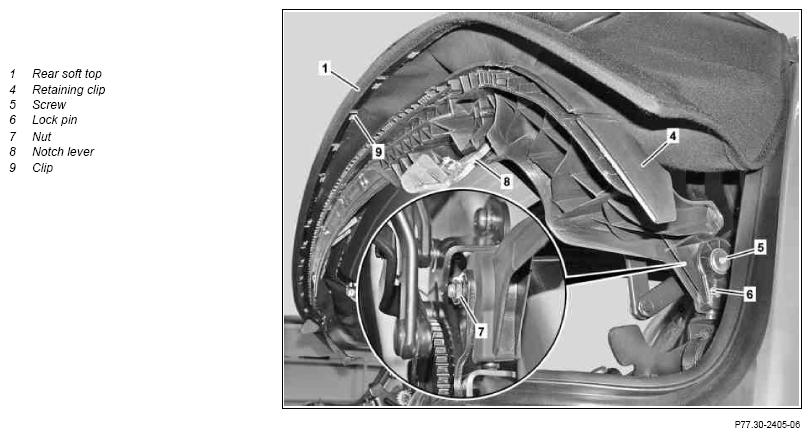

| 5 | Unhook rear soft top (1) from retaining clip (4), from outside toward inside | ||
| 6 | Remove clips (9) remaining in retaining clip (4) using suitable tool | ||
| 7 | Unscrew bolts (5) and remove retaining clip (4) | ||
| 8 | Remove notch lever (8) | When replacing retaining clip (4). | |
| 9 | Remove arresting bolt (6) | When replacing retaining clip (4). | AR77.30-P-1152MCO |
| 10 | Install in the reverse order | ||
| Adjust | |||
| 11 | Adjust retaining clip (4) on rear soft top (1) | AR77.30-P-1151-01MCO |
