Renew paint and bonding for roof and windshield with outer body - SM98.00-P-0001A

MODEL 451

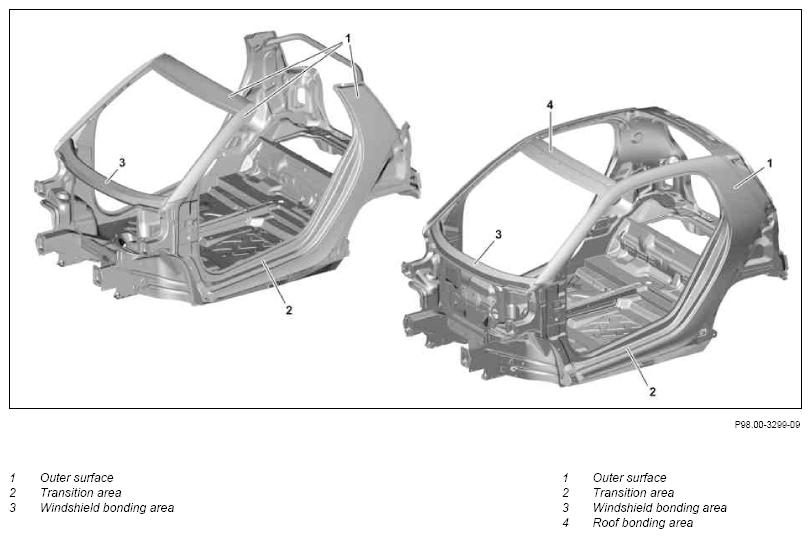

Fig 1: Identifying Windshield Bonding Application Area On Roof And Windshield With Outer Body

Courtesy of MERCEDES-BENZ USA

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Category	Op. no.	Operation text
C	026138	Conduct paintwork according to specifications

	List of affected vehicles	Model 451 from WME4513001K147672 to WME4514801K149202	SM98.00-P-0001-01AAA
	Removing
1	Expose affected areas of Tridion cell		SM98.00-P-0002A
2	Prepare affected area of Tridion cell for painting and bonding		SM98.00-P-0003A
	Painting
3	Apply base coat and clear varnish of selected paint system	The paint manufacturer's specifications must be complied with in full.
		Approved paint systems	SM98.00-P-0003-01A
4	Perform over drying	The paint manufacturer's specifications must be complied with in full.
5	Remove masking and bonding material	Leave masking tape on bonding surfaces for roof and windshield.
	Bonding
6	Glue in windshield and roof		SM98.00-P-0004A
	Install
7	Install remaining parts onto vehicle		SM98.00-P-0005A
