Remove/install soft top main bearing - AR77.30-P-1108MCP

MODEL 451.4

Right side of vehicle

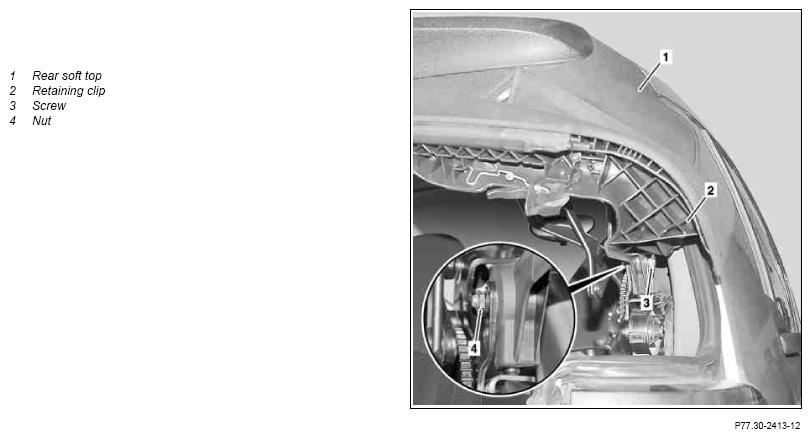

Fig 1: Identifying Soft Top Main Bearing Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

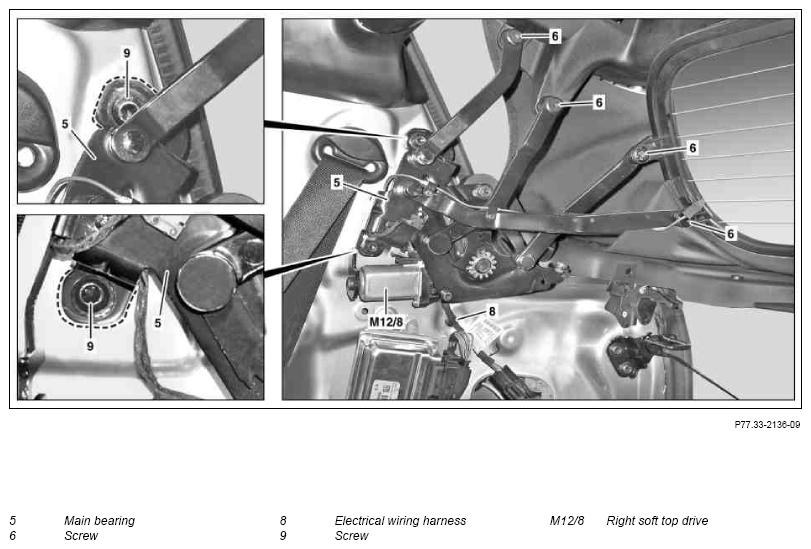

Fig 2: Identifying Soft Top Main Bearing Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Notes on soft tops		AH77.30-P-0001-01MCO
	Remove/install
1	Open rear soft top (1)
2	Unscrew bolt (3) from tensioning strap (2)
3	Remove right soft top drive (M12/8)		AR77.39-P-4010MCO
4	Remove electric wiring harness (8) from right main bearing (5)		AR77.39-P-1010MCP
5	Mark position of fastening points on main bearing (5) with suitable marker (broken lines)
6	Remove screw/bolts (6)	Helper required to position roof cassette.
7	Unscrew bolts (9) and remove main bearing (5)	Align main bearing (5) i relation to markings (broken lines) before tightening. Remove marks (broken lines) with suitable cleaning agent.
8	Install in the reverse order
	Adjust
9	Adjust soft top		AR77.30-P-1010MCO
