Remove/install soft top bow slider - AR77.33-P-2000MCO
MODEL 451.4, 453.4
Shown on left side of vehicle on model 451.4

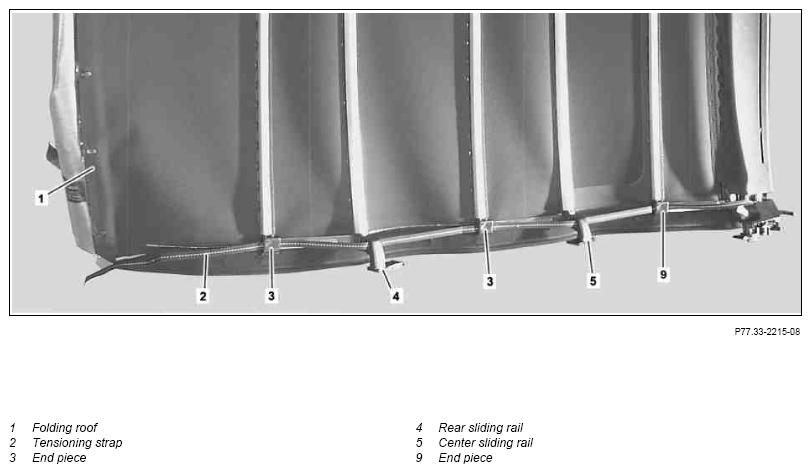

Fig 1: Identifying Soft Top Bow Slider Remove/Install Components - Shown On Left Side Of Vehicle On Model 451.4 (1 Of 2)

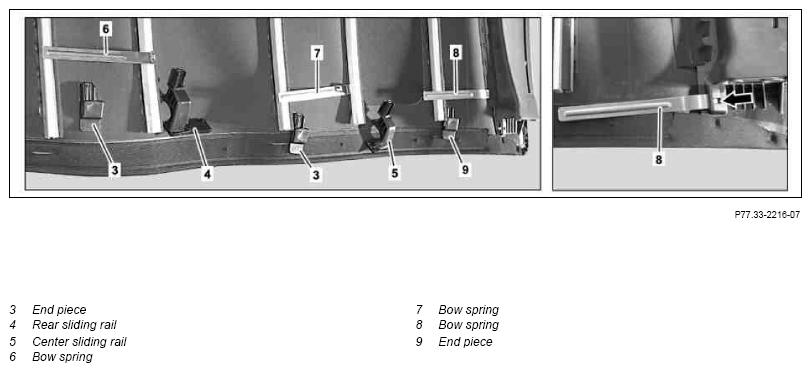

Fig 2: Identifying Soft Top Bow Slider Remove/Install Components - Shown On Left Side Of Vehicle On Model 451.4 (2 Of 2)
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove | |||
| 1 | Remove folding roof (1) | AR77.30-P-1100MCO | |
| 2 | Pull tensioning straps (2) out of rear sliding rails (4), center sliding rails (5) and end pieces (3) | ||
| 3 | Pull rear sliders (4) and bow springs (6) out of soft top bow and end pieces (3) | ||
| 4 | Pull center sliders (5) and bow springs (7) out of soft top bow and end pieces (3) | ||
| 5 | Pull end pieces (3) out of soft top bows and remove from pockets in folding roof (1) | ||
| 6 | Unhook end pieces (9) from pockets, pull out of soft top bows and detach from bow springs (8) | ||
| 7 | Remove bow springs (8) from roof peak (arrow) | ||
| Install | |||
| 8 | Hook end pieces (3) into pockets in folding roof (1) and insert in soft top bows | ||
| 9 | Match new bow springs (6, 7, 8) to new rear sliders (4), new center sliders (5) and end pieces (9) | ||
| 10 | Install new bow springs (8) in roof peak | ||
| 11 | Install new bow springs (7) in new center sliders (5) | ||
| 12 | Install new bow springs (7) in end pieces (3) and insert center sliders (5) in soft top bows | ||
| 13 | Install new bow springs (6) in new rear sliders (4) | ||
| 14 | Install new bow springs (6) in end pieces (3) and insert rear sliders (4) in soft top bows | ||
| 15 | Pull tensioning straps (2) into rear sliding rails (4), center sliding rails (5) and end pieces (3) | ||
| 16 | Install folding roof (1) | AR77.30-P-1100MCO |
