Remove/install folding top motor - AR77.39-P-4000MCO

MODEL 451.4

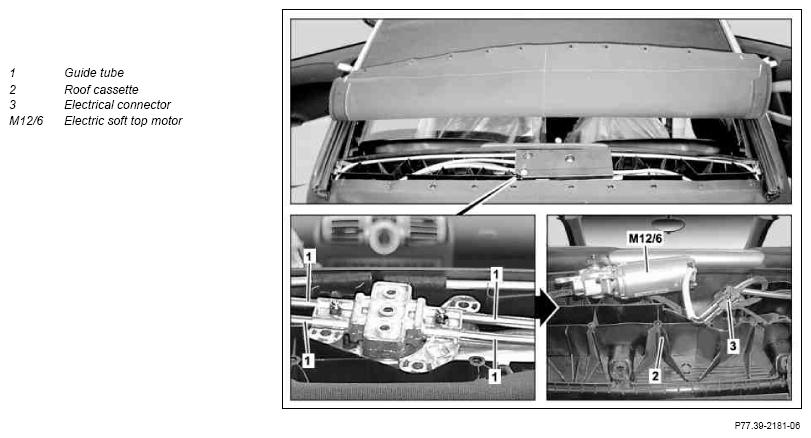

Fig 1: Identifying Folding Top Motor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Notes on soft tops		AH77.30-P-0001-01MCO
	Remove/install
1	Remove guide tube (1) from drive cable		AR77.30-P-1112MCO
2	Lift electric power soft top motor (M12/6) out of roof cassette (2)	Observe routing of electrical lines.
3	Disconnect electrical connector (3)
4	Install in the reverse order
