Remove/install centering aid - AR77.33-P-2020MCO
MODEL 451.4
MODIFICATION NOTES
| 1.4.14 | "Adjust soft top" added | Operation step 4 |
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove/install | |||

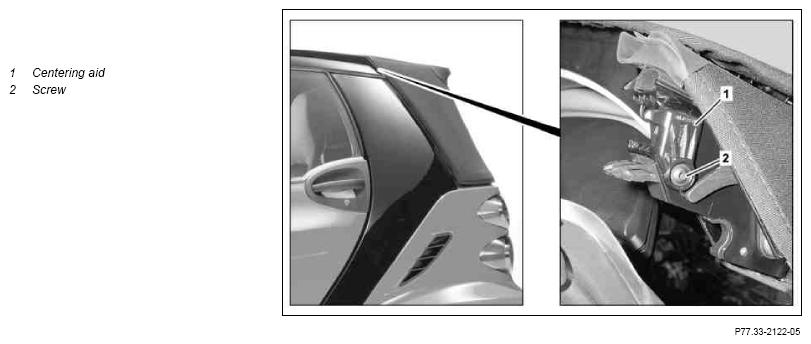

| 1 | Open soft top so that bolt (2) on centering aid (1) is accessible | ||
| 2 | Unscrew bolt (2) and remove centering aid (1) | ||
| 3 | Install in the reverse order | ||
| Check | |||
| 4 | Check soft top for proper function | In the event of complaints: ↓ Adjust soft top. |
AR77.30-P-1010MCO |
