Remove/install B-pillar catch - AR77.33-P-2100MCO
MODEL 451.4
MODIFICATION NOTES
| 1.4.14 | Adjust soft top added | Operation step 8 |
Shown on left side of vehicle

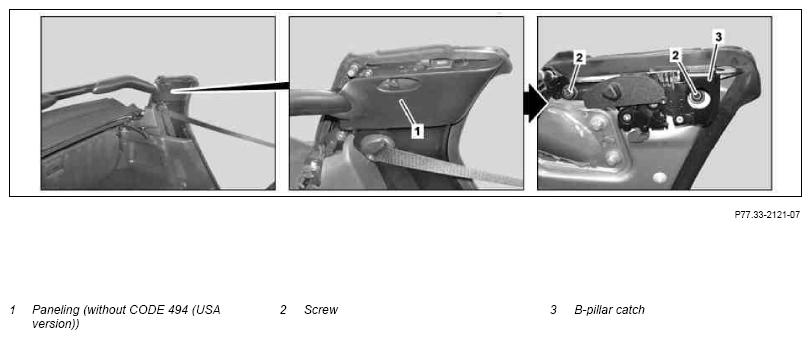

Fig 1: Identifying B-Pillar Catch Remove/Install Components - Shown On Left Side Of Vehicle (1 Of 2)

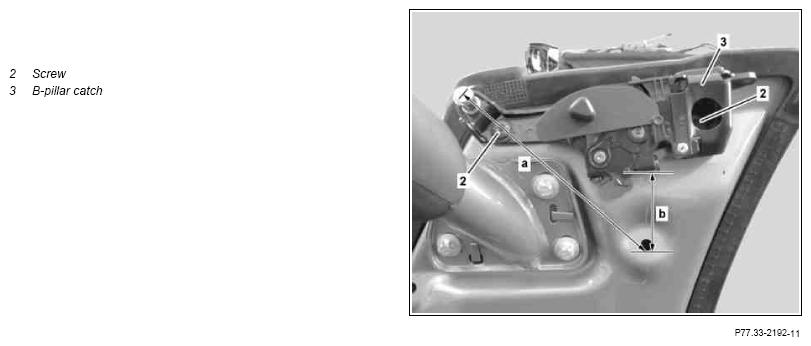

Fig 2: Identifying B-Pillar Catch Remove/Install Components - Shown On Left Side Of Vehicle (2 Of 2)
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove | |||
| 1 | Completely open soft top | ||
| 2.1 | Remove left and right paneling (1) from roof frame | MODEL 451.4 without CODE 494 (US version) * not for USA ↓ Remove/install side roof frame paneling |
AR68.30-P-4480MCO |
| 2.2 | Remove paneling on B-pillar | MODEL 451.4 with CODE 494 (US version) * for USA only ↓ Remove/install paneling on B-pillar |
AR68.30-P-4700MCV |
| 3 | Unscrew bolts (2) and remove B-pillar catch (3) | ||
| Install | |||
| 4 | Position B-pillar lock (3) at B-pillar according to dimensions (a, b) and tighten bolts (2) | Pin of upper soft top support to body bore hole | *BE77.30-P-1007-02A |
| Lower edge of upper soft top support to body bore hole | *BE77.30-P-1006-02A | ||
| 5 | Install side rail mount and ensure that side rail is arrested correctly and the sealing pressure is okay | The side support should arrest securely in second latch. If this is not the case: ↓ Loosen bolts (2) and correct position of B-pillar lock (3). Then tighten bolts (2). |
|
| 6 | Adjust soft top | AR77.30-P-1010MCO | |
| 7.1 | Install left and right paneling (1) on roof frame | MODEL 451.4 without CODE 494 (US version) * not for USA ↓ Remove/install side roof frame paneling |
AR68.30-P-4480MCO |
| 7.2 | Install paneling at B-pillar | MODEL 451.4 with CODE 494 (US version) * for USA only ↓ Remove/install paneling on B-pillar |
AR68.30-P-4700MCV |
SOFT TOP
| Number | Designation | MODEL 451.4 | |
|---|---|---|---|
| BE77.30-P-1006-02A | Lower edge of upper soft top support to body bore hole | mm | 51 ± 0, 5 |
SOFT TOP
| Number | Designation | MODEL 451.4 | |
|---|---|---|---|
| BE77.30-P-1007-02A | Pin of upper soft top support to body bore hole | mm | 155 ± 0, 5 |
