Remove, install rear soft top window - AR77.35-P-1000MCO

MODEL 451.4

Shown on left side of vehicle

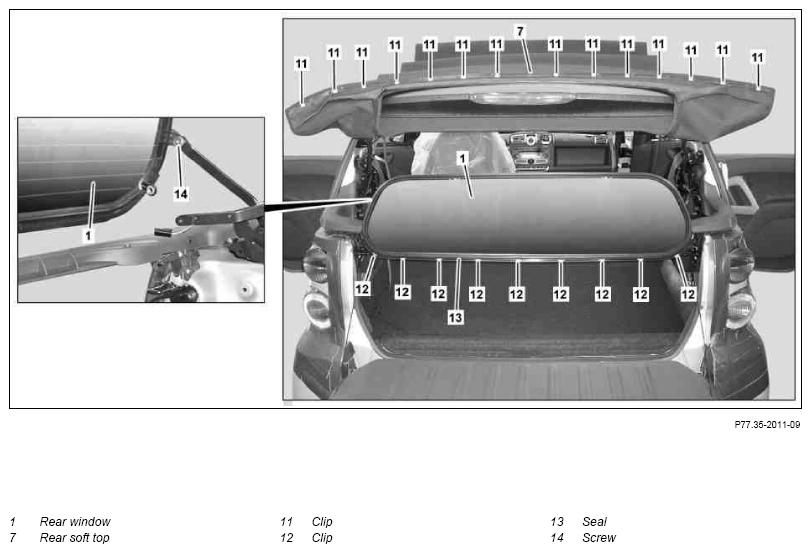

Fig 1: Identifying Rear Soft Top Window Remove/Install Components - Shown On Left Side Of Vehicle (1 Of 2)

Courtesy of MERCEDES-BENZ USA

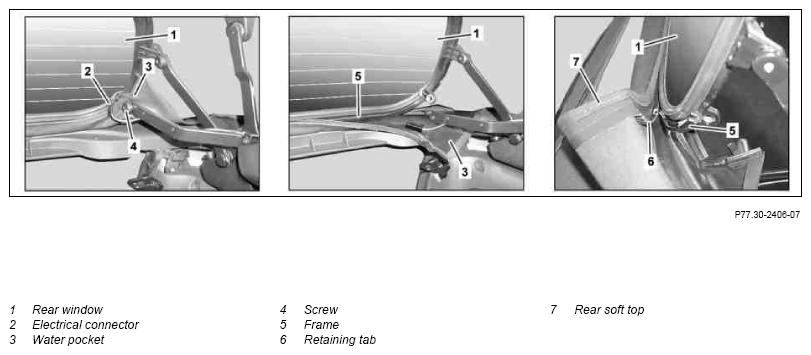

Fig 2: Identifying Rear Soft Top Window Remove/Install Components - Shown On Left Side Of Vehicle (2 Of 2)

Courtesy of MERCEDES-BENZ USA

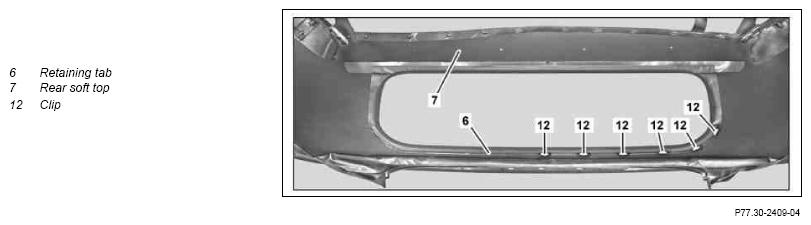

Fig 3: Identifying Rear Soft Top Window Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown on removed rear soft top

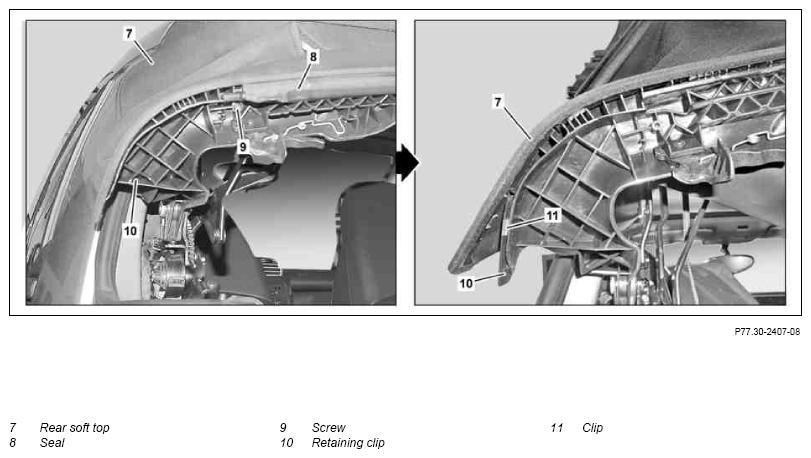

Fig 4: Identifying Rear Soft Top Window Remove/Install Components - Shown On Removed Rear Soft Top

Courtesy of MERCEDES-BENZ USA

	Notes on soft tops		AH77.30-P-0001-01MCO
	Remove/install
1	Disconnect left and right electrical connector (2)
2	Remove left and right bolt (4)
3	Pull retaining tab of water pocket (3) out of frame (5) on rear window (1)
4	Pull retaining tab (6) of rear soft top (7) completely out of frame (5) on rear window (1)
5	Remove clips (12) remaining in frame (5) with suitable plastic wedge	Install clips (12) on retaining tab (6) on rear soft top (7).
6	Fold up retaining clip (10), unscrew bolts (9) and pull seal (8) out of retaining clip (10)
7	Unhook rear soft top (7) from retaining clip (10) from outside toward inside and fold up
8	Remove clips (10) remaining in retaining clips (11) with suitable plastic wedge	Install clips (11) on hooking lug on rear soft top (7).
9	Unscrew left and right bolt (14), remove rear window (1)	Helper required.
10	Pull seal (13) out of frame (5) on rear window (1)	When replacing rear window (1).
		The ends of the seal (13) should make contact with one another at bottom at the center of the frame (5).
11	Install in the reverse order
	Check
12	Check soft top for proper function	If there are problems: ↓ Adjust soft top	AR77.30-P-1010MCO
