Retrofit daytime running lights headlamp - AN82.10-P-0100MCD

MODEL 451.3/4 (except 451.391/491) up to 19.3.12 except CODE (V07) Front fog lamps (FFO)

retrofitting LED daytime running lights (code V12)

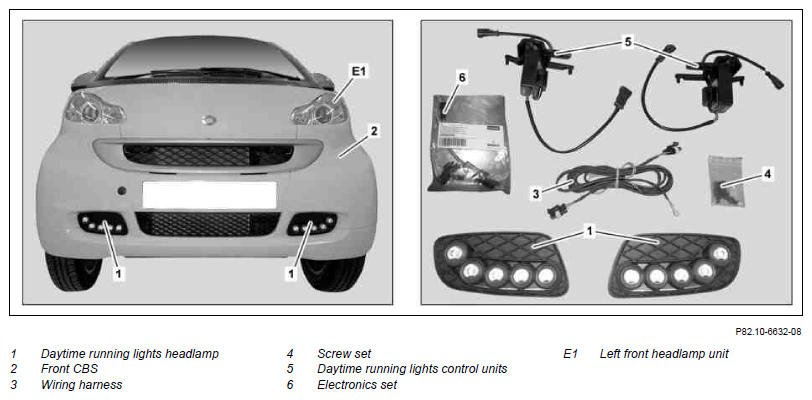

Fig 1: Identifying Daytime Running Lights Headlamp Related Components

Courtesy of MERCEDES-BENZ USA

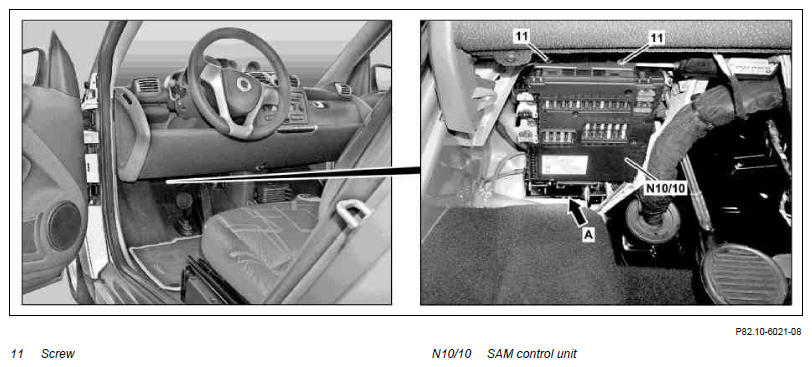

Fig 2: Identifying SAM Control Unit And Screw

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Disconnect battery ground line		AR54.10-P-0003MCC
2	Remove CBS front end (2)		AR88.00-P-1010MCC
3	Remove left front lamp unit (E1)	* not for USA	AR82.10-P-4730MCC
		* for USA only	AR82.10-P-4730MCU
4	Adjust the left front seat to the rear
5	Unclip left tweeter from instrument panel and place to one side with electrical line connected	On vehicles up to 30.8.10 with code (C17) Sound package (2 tweeters, 2 bass reflex boxes and diplexer) (FFO) or On vehicles with code (C54) Sound system 2	AR82.62-P-1000MCC
6	Unclip SAM control unit (N10/10) in front area (arrow A) and fold down to the rear
7	Remove screws/bolts (11) and carefully lower SAM control unit (N10/10) until electrical connectors are accessible
	Install
	Risk of injury  caused by burns to skin and eyes. Risk of poisoning  caused by inhaling fumes when working with heat-shrinkable tubing.	Work in well ventilated rooms only. Wear safety glasses with side protection and protective gloves.	AS00.19-Z-0001-01A
8	Retrofit electrical wiring harness (3) for daytime running lights headlamp (1)	On vehicles without code (460) Canada version	AN82.10-P-0100-01MCC
		Wiring harness repair kit, basic	Figure
		Expanding pliers	Figure
		Puller aid Hot air blower	AN82.10-P-0100-01MCD
		On vehicles with code (460) Canada version	Figure
		Wiring harness repair kit, basic	Figure
		Expanding pliers	Figure
		Puller aid	Figure
9	Tighten SAM control unit (N10/10) with screws/bolts (11)
10	Clip SAM control unit (N10/10) into front area (arrow A)
11	Clip left tweeter into instrument panel	On vehicles up to 30.8.10 with code (C17) Sound package (2 tweeters, 2 bass reflex boxes and diplexer) (FFO) or On vehicles with code (C54) Sound system 2	AR82.62-P-1000MCC
12	Retrofit daytime running lights control units (5)		AN82.10-P-0100-02MCD
13	Install left front lamp unit (E1)		AR82.10-P-4730MCC
14	Install CBS front end (2)		AR88.00-P-1010MCC
15	Retrofit daytime running lights headlamp (1) into CBS front end (2)		AN82.10-P-0100-04MCD
16	Connect ground cable to battery		AR54.10-P-0003MCC
17	Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc)	On vehicles with code (460) Canada version Delete:  Code (K06) Daytime running lights
18	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)	On vehicles with code (460) Canada version
19	Run variant coding with XENTRY using software calibration number (SCN)	On vehicles with code (460) Canada version Variant coding with XENTRY using the software calibration number (SCN) must be carried out for the following control unit: "SAM control unit"
20	Disconnect Star Diagnosis	On vehicles with code (460) Canada version
21	Deactivate daytime running lights circuit on vehicle	On vehicles with code (K06) Daytime running lights and without code (460) Canada version Switch off ignition and remove key. Operate headlamp flasher and press "Release" button on key at same time. A signal tone is emitted to confirm that the daytime running lights are switched off.

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Expanding Pliers (450 589 12 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Puller Aid (450 589 25 63 00)

Courtesy of MERCEDES-BENZ USA
