Retrofit daytime running lights headlamp - AN82.10-P-0100MCC

MODEL 451.3/4 (except 451.391/491) up to 19.3.12

except CODE (V07) Front fog lamps (FFO)

except CODE (460) Canada version

Retrofitting daytime running lights "straight design"

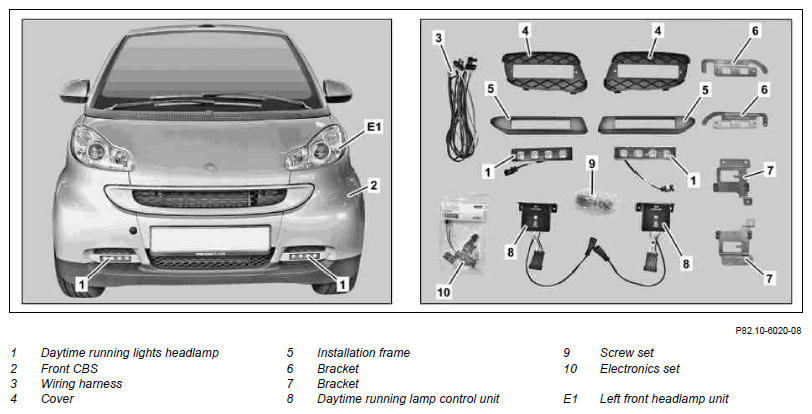

Fig 1: Identifying Daytime Running Lights Headlamp Related Components

Courtesy of MERCEDES-BENZ USA

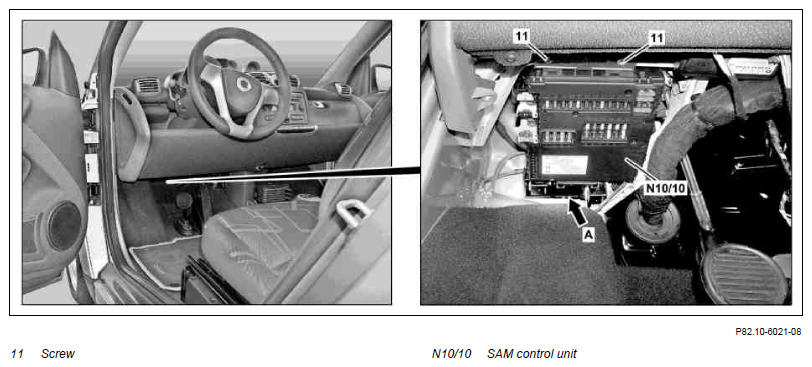

Fig 2: Identifying SAM Control Unit And Screw

Courtesy of MERCEDES-BENZ USA

	Removing
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Disconnect battery ground line		AR54.10-P-0003MCC
2	Remove CBS front end (2)		AR88.00-P-1010MCC
3	Remove left front lamp unit (E1)	* not for USA	AR82.10-P-4730MCC
		* for USA only	AR82.10-P-4730MCU
4	Adjust the left front seat to the rear
5	Unclip left tweeter from instrument panel and place to one side with electrical line connected	On vehicles up to 30.8.10 with code (C17) Sound package (2 tweeters, 2 bass reflex boxes and diplexer) (FFO) or On vehicles with code (C54) Sound system 2	AR82.62-P-1000MCC
6	Unclip SAM control unit (N10/10) in front area (arrow A) and fold down to the rear
7	Remove screws/bolts (11) and carefully lower SAM control unit (N10/10) until electrical connectors are accessible
	Install
	Risk of injury  caused by burns to skin and eyes. Risk of poisoning  caused by inhaling fumes when working with heat-shrinkable tubing.	Work in well ventilated rooms only. Wear safety glasses with side protection and protective gloves.	AS00.19-Z-0001-01A
8	Retrofit electrical wiring harness (3) for daytime running lights headlamp (1)		AN82.10-P-0100-01MCC
		Wiring harness repair kit, basic	Figure
		Expanding pliers	Figure
		Puller aid Hot air blower	Fig 5
9	Tighten SAM control unit (N10/10) with screws/bolts (11)
10	Clip SAM control unit (N10/10) into front area (arrow A)
11	Clip left tweeter into instrument panel	On vehicles up to 30.8.10 with code (C17) Sound package (2 tweeters, 2 bass reflex boxes and diplexer) (FFO) or On vehicles with code (C54) Sound system 2	AR82.62-P-1000MCC
12	Retrofit daytime running lights control units (8)	Cordless drill/driver	AN82.10-P-0100-02MCC
13	Retrofit daytime running lights headlamp (1) into CBS front end (2)	Before installation of the daytime running lights headlamps (1), the primed installation frames (5) are to be painted according to customer request.	AN82.10-P-0100-04MCC
14	Install left front lamp unit (E1)	* not for USA	AR82.10-P-4730MCC
		* for USA only	AR82.10-P-4730MCU
15	Install CBS front end (2)		AR88.00-P-1010MCC
16	Connect ground cable to battery		AR54.10-P-0003MCC
17	Deactivate daytime running lights circuit on vehicle	Only on vehicles with code (K06) Daytime running lamps Switch off ignition and remove key. Operate headlamp flasher and press "Release" button on key at same time. A signal tone is emitted to confirm that the daytime running lights are switched off.
18	Place certification in the vehicle	Applies to Europe only
	Use for daytime running lamps, certificate	* Applies to Europe only	OF82.10-P-1000-01A

Fig 3: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Expanding Pliers (450 589 12 37 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Puller Aid (450 589 25 63 00)

Courtesy of MERCEDES-BENZ USA
