Retrofit BRABUS longitudinal member panel illumination - AN82.10-P-0008MCC

MODEL 451.3/4 (except 451.391/491) up to 19.3.12 except CODE (P02) car2go

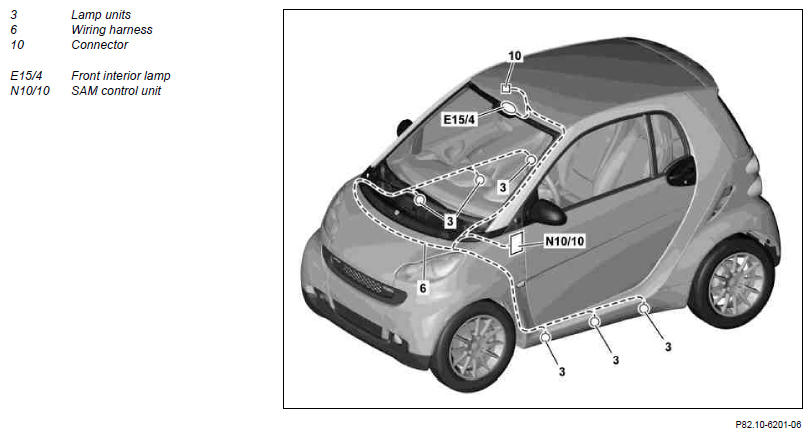

Fig 1: Identifying BRABUS Longitudinal Member Panel Illumination Related Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Disconnect ground line of battery		AR54.10-P-0003MCC
2	Remove paneling on right A-pillar	* not for USA	AR68.30-P-4050MCC
		* for USA only	AR68.30-P-4050MCU
3	Remove inside rearview mirror	* not for USA	AR68.40-P-0001MCC
		* for USA only	AR68.40-P-0001MCU
4	Remove front roof frame paneling	Model 451.3 * not for USA	AR68.30-P-4450MCC
		Model 451.3 * for USA only	AR68.30-P-4450MCU
		Model 451.4 * not for USA	AR68.30-P-4450MCO
		Model 451.4 * for USA only	AR68.30-P-4450MCV
5	Remove longitudinal member panels		AR88.80-P-6000MCC
6	Remove front CBS		AR88.00-P-1010MCC
7	Remove left front headlamp unit	* not for USA	AR82.10-P-4730MCC
		* for USA only	AR82.10-P-4730MCU
	Install
8	Prepare longitudinal member panel for installation of BRABUS longitudinal member panel illumination	On vehicles without BRABUS longitudinal member panel	AN82.10-P-0008-01MCC
		Graduated drill Rechargeable drill/screwdriver	Fig 2
		On vehicles with BRABUS longitudinal member panel	AN82.10-P-0008-01MCB
		Graduated drill Rechargeable drill/screwdriver	Fig 2
9	Retrofit BRABUS longitudinal member panel lamp unit (3)	Ensure that the wiring harnesses cannot be damaged by chafing or pinching. Consequential damage can occur otherwise.	AN82.10-P-0008-03MCC
10	Retrofit BRABUS longitudinal member panel illumination wiring harness	Ensure that the wiring harnesses cannot be damaged by chafing or pinching. Consequential damage can occur otherwise.	AN82.10-P-0008-02MCC
11	Install remaining parts	When installing longitudinal member panels, connect wiring harness of lamp units (3) with wiring harness (6).
12	Perform function test of BRABUS longitudinal member panel illumination	The following functions must be present: Vehicle is unlocked: Lamp units (3) light up. Vehicle is locked: Lamp units (3) are switched off in a dimmed state. Door opened: Lamp units (3) light up. Lamp units (3) are switched off when ignition is switched on (circuit 15).

Fig 2: Identifying Graduated Drill (450 589 00 28 00)

Courtesy of MERCEDES-BENZ USA

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 98	BRABUS longitudinal member panel illumination parts kit	1
