Remove/install cover for backrest at front seat - AR91.10-P-8656MCU
MODEL 451.3/4
Shown on code (S17) Seat heaters (FFO)

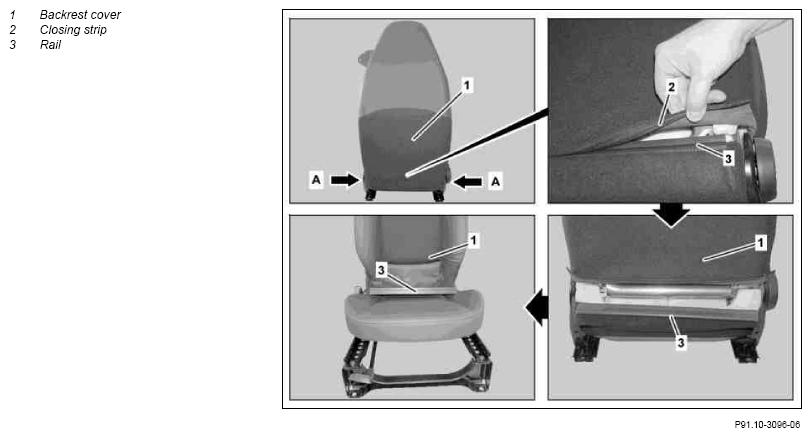

Fig 2: Identifying Cover For Backrest At Front Seat Remove/Install Components - Shown On Code (S17) Seat Heaters (FFO) (1 Of 2)
Fig 3: Identifying Cover For Backrest At Front Seat Remove/Install Components - Shown On Code (S17) Seat Heaters (FFO) (2 Of 2)
MODIFICATION NOTES
| 7.5.10 | Remove armrest added | Operation step 4 |
| Remove/install | |||
| Risk of injury caused by backrest suddenly folding forward if release lever is accidentally operated during inspection and repair work | When working on the seat, be careful not to accidentally release the backrest mechanism allowing the seat to fold forward. Keep body parts clear of the backrest travel area. | AS91.00-Z-0005-01V | |
| 1 | Remove belt guide | See: ↓ |
AR91.45-P-0500MCC |
| Make cuts for belt guide at cover of front seat backrest | AR91.10-P-8656-01MCC | ||
| 2.1 | Remove driver seat | When removing backrest cover (1) from driver seat. | AR91.10-P-1010MCU |
| 2.2 | Remove passenger seat | When removing backrest cover (1) from front passenger seat. | AR91.10-P-1020MCU |
| 3 | Remove sidebag unit | AR91.60-P-0695MCU | |
| 4 | Remove center armrest | For vehicles with code (I50) Armrest or with retrofitted center armrest | AR91.27-P-1000MCC |
| 5 | Set seat backrest to vertical position | ||

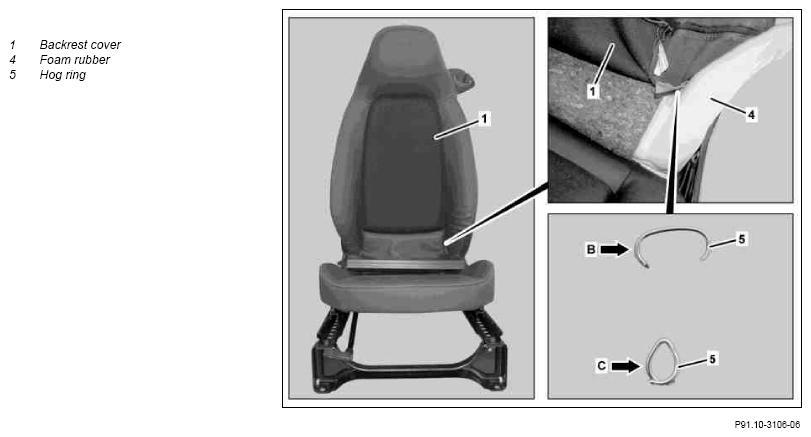

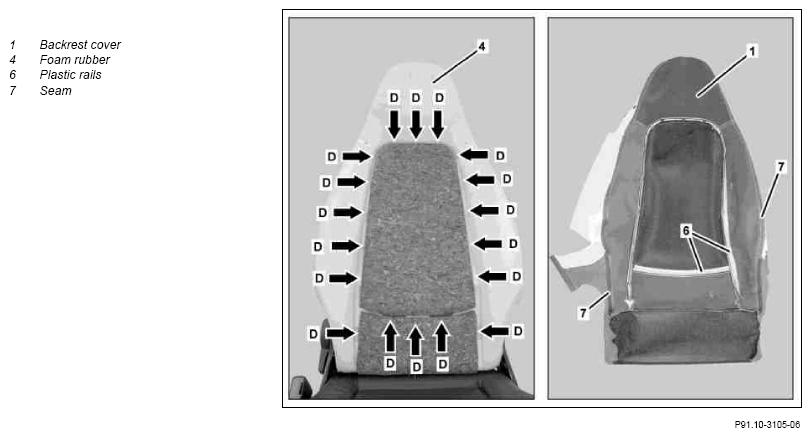

| 6 | Remove hog rings (5) using suitable side cutting pliers | Align seams (7) of backrest cover (1) and position in cutouts in foam section (4). |
|
| Figure | |||
| 7 | Take backrest cover (1) up and out | ||
| 8 | Install in the reverse order |
