Remove/install front seat center armrest - AR91.27-P-1000MCC
MODEL 451.3/4 as of 31.8.10 with CODE (I50) Armrest
MODEL 451.3/4
Retrofitted center armrest

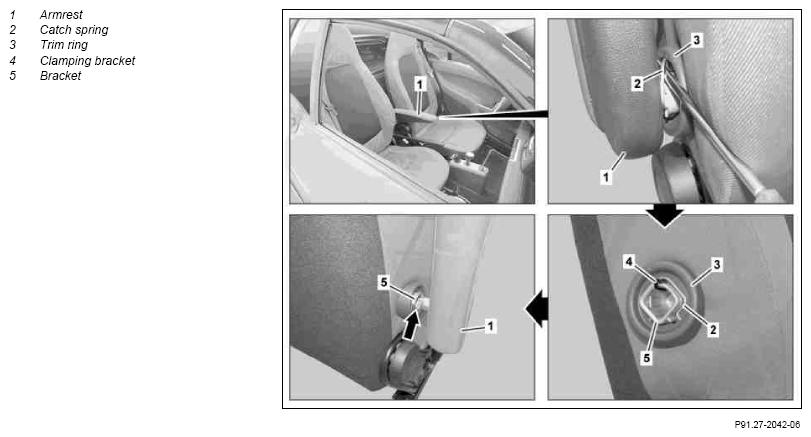

| Removing | |||
| 1 | Fold armrest (1) upward | ||
| 2 | Pry out catch spring (2) with a suitable screwdriver from trim ring (3) and then pull out upwards | ||
| 3 | Pull out armrest (1) from the bracket (5) | ||
| 4 | Remove trim ring (3) and clamp (4) | ||
| Install | |||
| 5 | Place trim ring (3) on the bracket (5) | ||
| 6 | Push clamp (4) onto the bracket (5) and insert catch spring (2) | ||
| 7 | Insert armrest (1) into the bracket (5) in such a way that the chamfer (arrow B) points to the rear |
