Air intake, function - GF09.00-P-3000MCC

ENGINE 132.910 in MODEL 451.3 /4

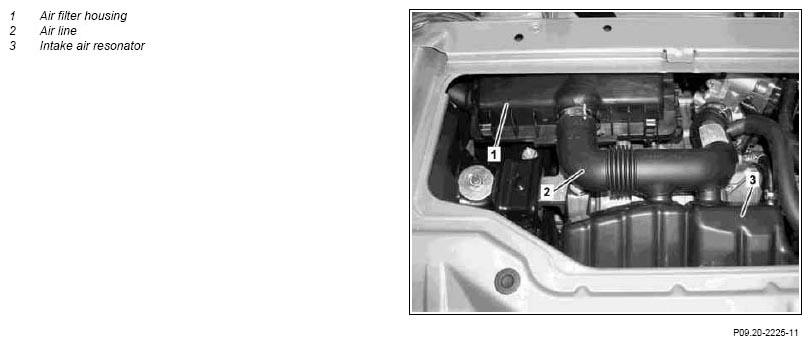

Fig 1: Identifying Air Filter Housing, Air Line And Intake Air Resonator

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function

The fresh air is sectioned in via the air filter housing and cleaned by the air filter installed in the air filter housing. The cleaned fresh air is then passed back via the air line to the individual intake ports. The intake air resonator mounted on the air line serves as a pulsation damper. This reduces intake noise and minimizes the fluctuations which occur in the air flow during load changes.
