Component description for the intake air resonator - GF09.20-P-3110MCC
ENGINE 132.9 in MODEL 451.3 /4

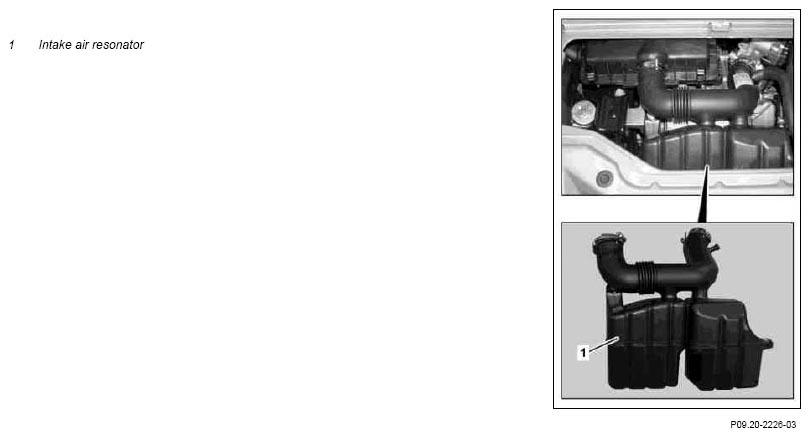

Shown on engine 132.910
Location
The intake air resonator is located on the upper side of the engine on the air line coming from the air filter.
Task
The intake air resonator serves as a pulsation damper. This reduces intake noise and minimizes the fluctuations which occur in the air flow during load changes.
