Remove/install rear axle shaft - AR35.30-P-0620MCU

MODEL 451.3/4

Shown on right side of vehicle

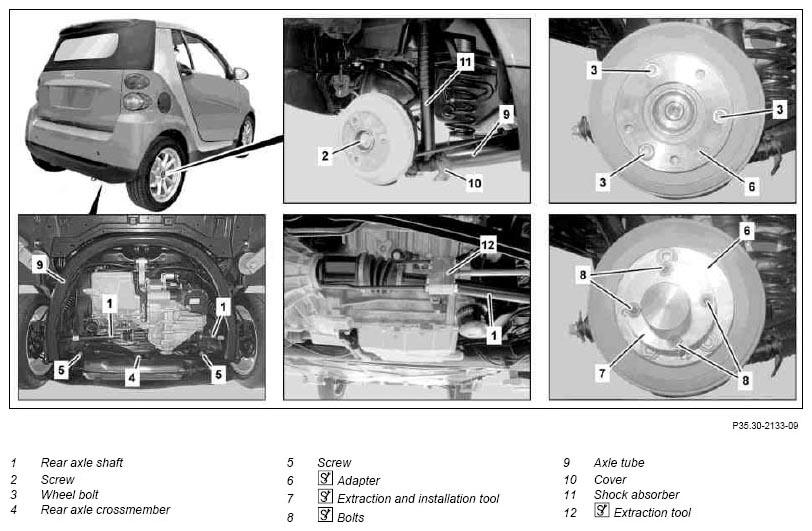

Fig 1: Identifying Rear Axle Shaft Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

MODIFICATION NOTES

26.10.07

Bolt, shock absorber to rear axle

*BA32.25-P-1001-03N

	Remove/install
1	Remove left or right rear wheel		AR40.10-P-1100MCU
2	Unscrew bolt (2) of rear axle shaft (1)	To undo and tighten the bolt (2) screw two wheel bolts (3) into the wheel hub and counterhold wheel hub using a suitable tool. Installation:  Replace self-locking bolt (2) of rear axle shaft (1).
			*BA35.30-P-1002-01D
3	Support the rear axle crossmember (4) using a transmission jack, unscrew bolts (5) and lower the rear axle crossmember (4)	Transmission jack gotis://H_00.10_01.	*BA35.10-P-1003-01F
4	Remove wheel bolts (3) from wheel hub, position adaptation (6) to line up with the hole circle and attach to the wheel hub with all wheel bolts (3)		*451589003400
5	Position the extraction and insertion tool (7) to line up with the hole circle and fasten with bolts (8) to the adapter (6)		*451589003400
			*210589034300
6	Press rear axle shaft (1) out of the wheel hub and detach extraction and insertion tool (7) as well as adapter (6) from the wheel hub		*451589003400
			*210589034300
7	Support axle tube (9) with major assemblies lifting table or transmission jack	If both rear axle shafts (1) are removed simultaneously, the major assemblies lifting table should be used to support the axle tube (9). Major assembly platform lift gotis://A_01_07.1
8	Remove expansion clip on cover (10), remove cover (10)
9	Remove bolt of shock absorber (11) on axle tube (9)		*BA32.25-P-1001-03N
10	Lower the axle tube (9) carefully and guide rear axle shaft (1) out of the wheel hub	Ensure that the inner ball joint of the rear axle shaft (1) is not pulled apart as it will be irreparably damaged as a result. When lowering the axle tube (9) ensure that the rear spring does not fall out of its supports. Installation:  Observe the correct seat of the rear spring in the supports on the axle tube (9) and on the frame-type integral support. Insert the shock absorber (11) into the support on the axle tube (9).
11	Raise the axle tube (9) and attach to the shock absorber (11)	Installation:  Unscrew bolt on shock absorber (11) and lower the axle tube (9) until the rear axle shaft (1) can be inserted into the wheel hub. In the process ensure that the rear spring does not fall out of its supports.
12	Undo rear axle shaft (1) using impact extractor and extractor tool (12) on transmission and remove. Afterwards seal the transmission opening with plug	Collect escaping transmission oil in a suitable container. Installation:  Do not damage radial shaft sealing ring otherwise it may leak. Installation:  Replace circlip on the inner joint of the rear axle shaft (1).
			*221589043300
			*602589003300
		Plug	*BR00.45-Z-1005-15A
13	Install in the reverse order
14	Inspect transmission oil level, adjust to correct level if necessary		AR26.00-P-0200MCU

REAR AXLE SHOCK ABSORBER

Number	Designation		Model 451.3/4
BA32.25-P-1001-03N	Bolt, shock absorber to rear axle	Nm	70

REAR AXLE CARRIER

Number	Designation		Model 451.3/4
BA35.10-P-1003-01F	Bolt, crossmember to frame-type integral support	Nm	65

REAR AXLE SHAFT

Number	Designation			Model 451.3/4
BA35.30-P-1002-01D	Bolt, rear axle shaft to rear axle shaft flange	Stage 1	Nm	45
		Stage 2	∠°	90

Fig 2: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Extraction Tool (221 589 04 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Adaptation (451 589 00 34 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Impact Extractor (602 589 00 33 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-15A	Cap to transmission housing	A 451 261 00 33
