Remove/install splash shield on front brake - AR42.10-P-0233MCU

MODEL 451.3/4

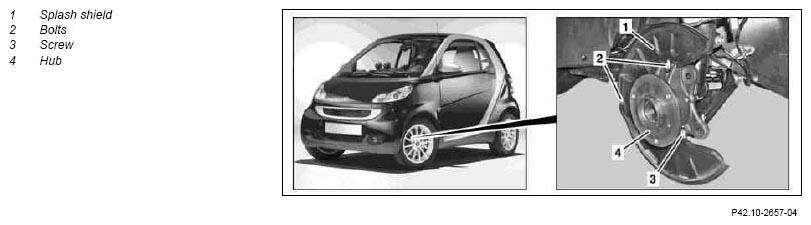

Fig 1: Identifying Front Brake Splash Shield Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
1	Remove left or right brake disk		AR42.10-P-0230MCU
2	Remove bolts (2)
3	Unscrew bolt (3).	Turn hub (4) such that the bolt (3) can be accessed through a wheel bolt bore in the hub (4).
4	Remove splash shield (1)
5	Install in the reverse order
