Remove/install brake lines - AR42.10-P-0017MCU

MODEL 451.3/4

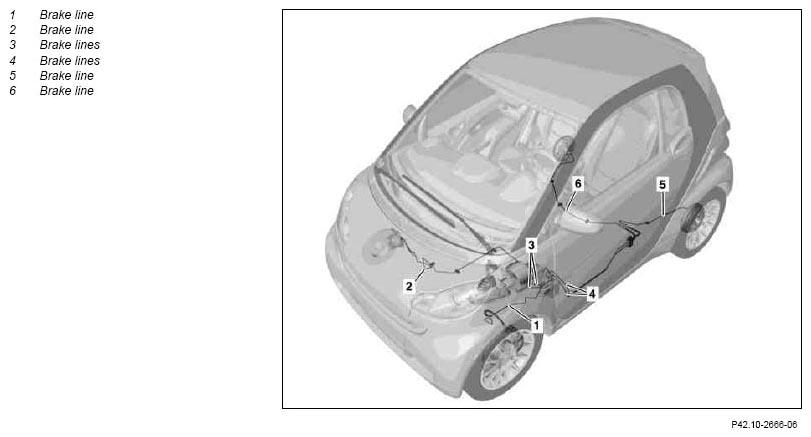

Fig 1: Brake Line Routing Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Figure item, etc.	Work instructions
1	Brake line	From the ESP hydraulic unit to the left front brake hose.
		Remove/install left front brake line	AR42.10-P-0032MCU
2	Brake line	From the ESP hydraulic unit to the right front brake hose.
		Remove/install right front brake line	AR42.10-P-0033MCU
3	Brake lines	From the master brake cylinder to the ESP hydraulic unit.
		Remove/install brake line from the master brake cylinder to the ESP hydraulic unit	AR42.10-P-0034MCU
4	Brake lines	From the ESP hydraulic unit to the brake hose on the rear axle.
		Remove/install brake line from the ESP hydraulic unit to the rear axle	AR42.10-P-0035MCU
5	Brake line	From the brake hose on the rear axle to the left wheel brake cylinder.
		Remove/install left rear brake line	AR42.10-P-0036MCU
6	Brake line	From the brake hose on the rear axle to the right wheel brake cylinder.
		Remove/install right rear brake line	AR42.10-P-0037MCU
