Remove/install brake hose to front axle - AR42.10-P-0026MCU

MODEL 451.3/4

Shown on left side of vehicle

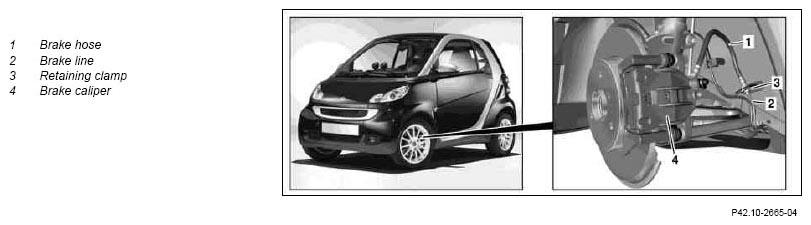

Fig 1: Identifying Front Axle Brake Hose Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Remove left or right front wheel		AR40.10-P-1100MCU
2	Detach retaining clip (3)
3	Check bolted connection of brake line (2) with brake hose (1) for color coding	Installation:  Identify the brake line (2) accordingly.	AR42.10-P-0013-05MCC
4	Loosen bolted connection of brake line (2) with the brake hose (1) and unhook brake hose (1)	Collect brake fluid in a suitable container. Seal the connections using suitable plugs. Installation:  The brake hose (1) must free to move at each steering angle and jounce condition. The brake hose (1) must not be mounted twisted otherwise the brake hose (1) may be damaged.
			*BA42.10-P-1002-04E
			*450589099904
5	Unscrew brake hose (1) from brake caliper (4) and remove	Collect brake fluid in a suitable container. Seal the connections using suitable plugs.
			*BA42.10-P-1001-04E
6	Replace brake line (2).	Only if the brake line (2) with the red color coding has been detached.
		Remove/install left front brake line	AR42.10-P-0032MCU
		Remove/install right front brake line	AR42.10-P-0033MCU
7	Install in the reverse order
8	Bleed brake system		AR42.10-P-0010MCU

BRAKE LINES, BRAKE HOSES

Number	Designation		Model 451.3/4
BA42.10-P-1001-04E	Brake hose to front floating caliper	Nm	18
BA42.10-P-1002-04E	Brake pipe to brake hose	Nm	16

Fig 2: Identifying Box Wrench Bit (450 589 09 99 04)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
